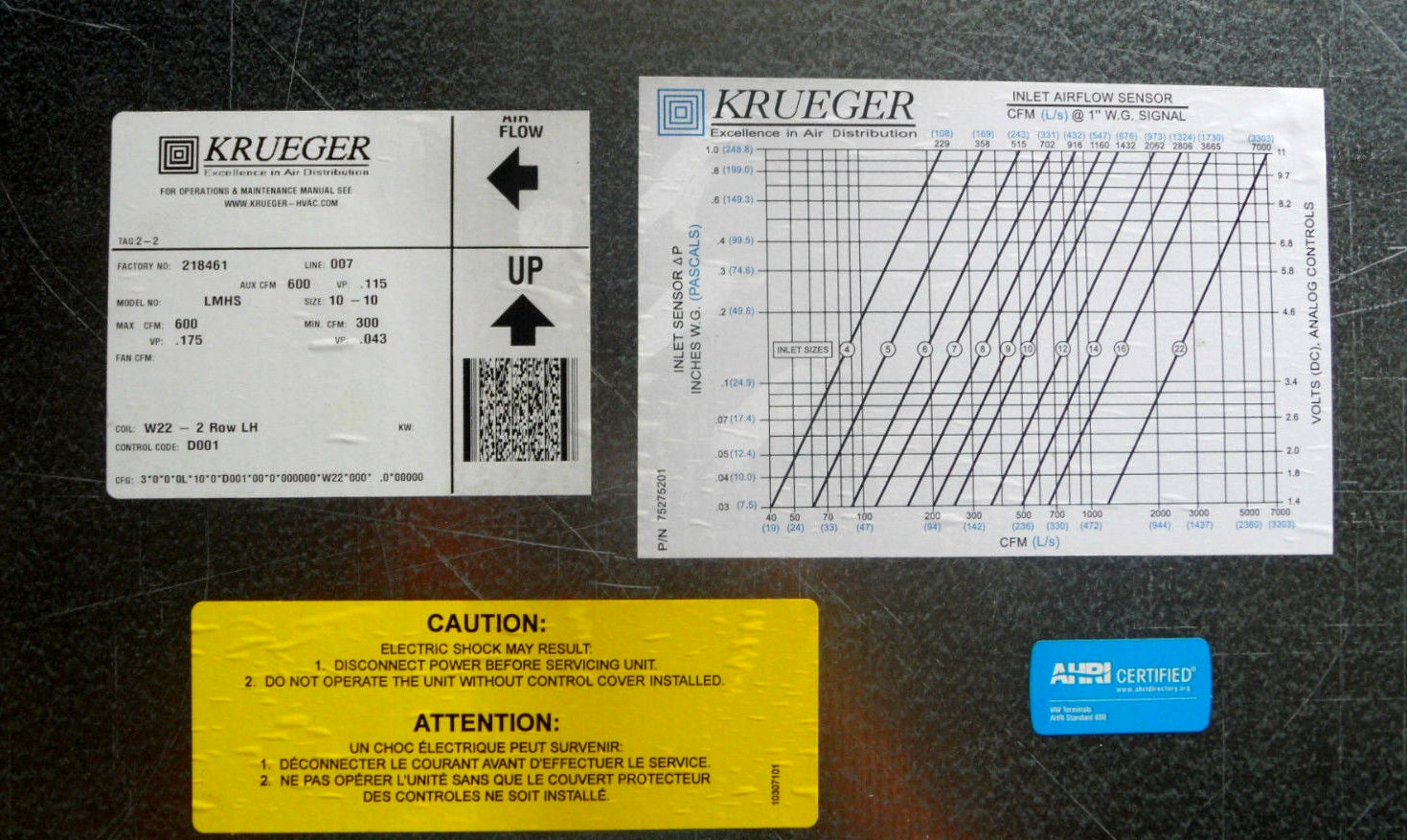

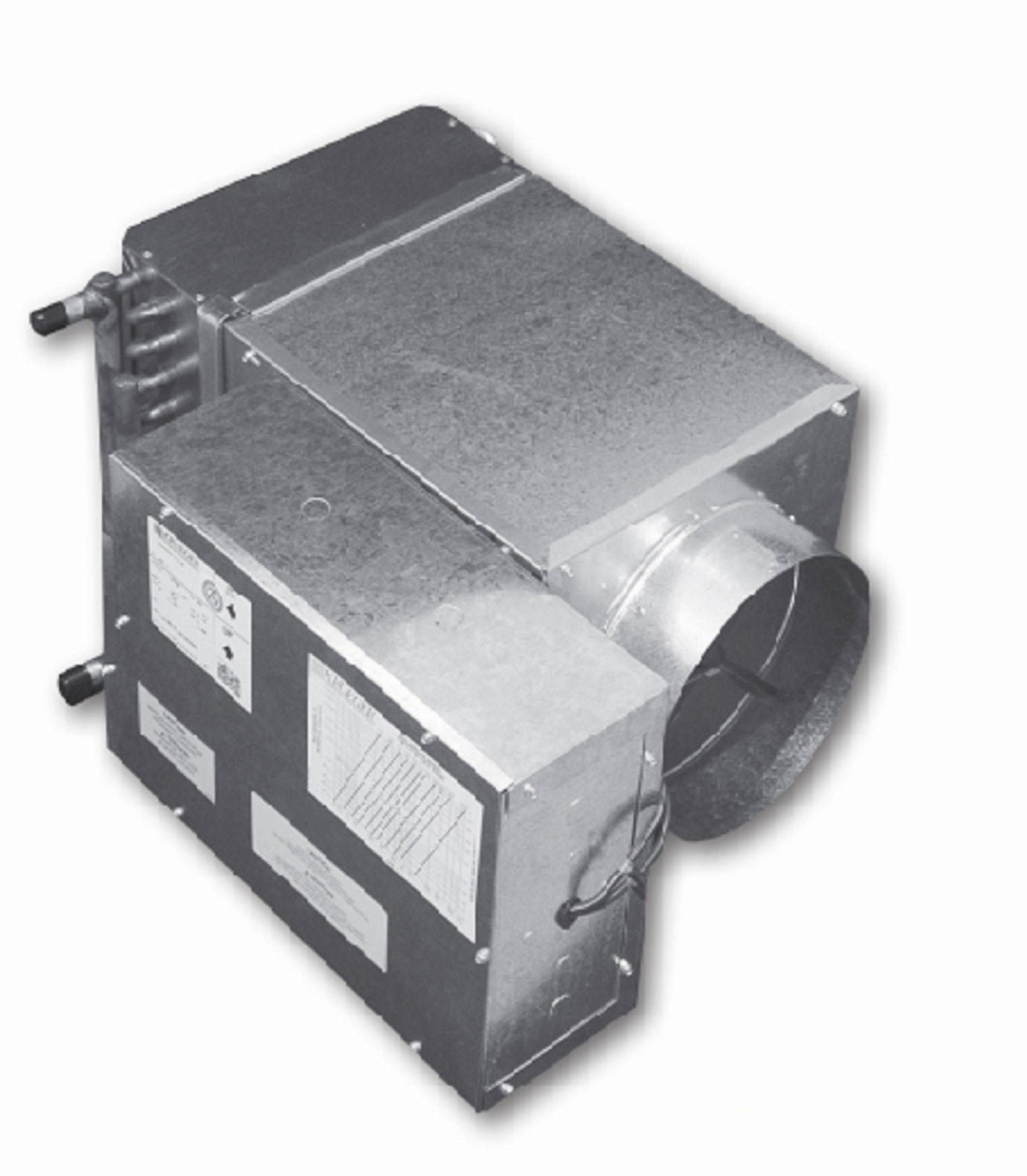

Krueger LMHS 600 Single Duct Terminal Unit Size 10-10 w/ Hot Water Heat 75275201

Krueger LMHS Single Duct Terminal Unit Size 10-10 w/ Hot Water Heat

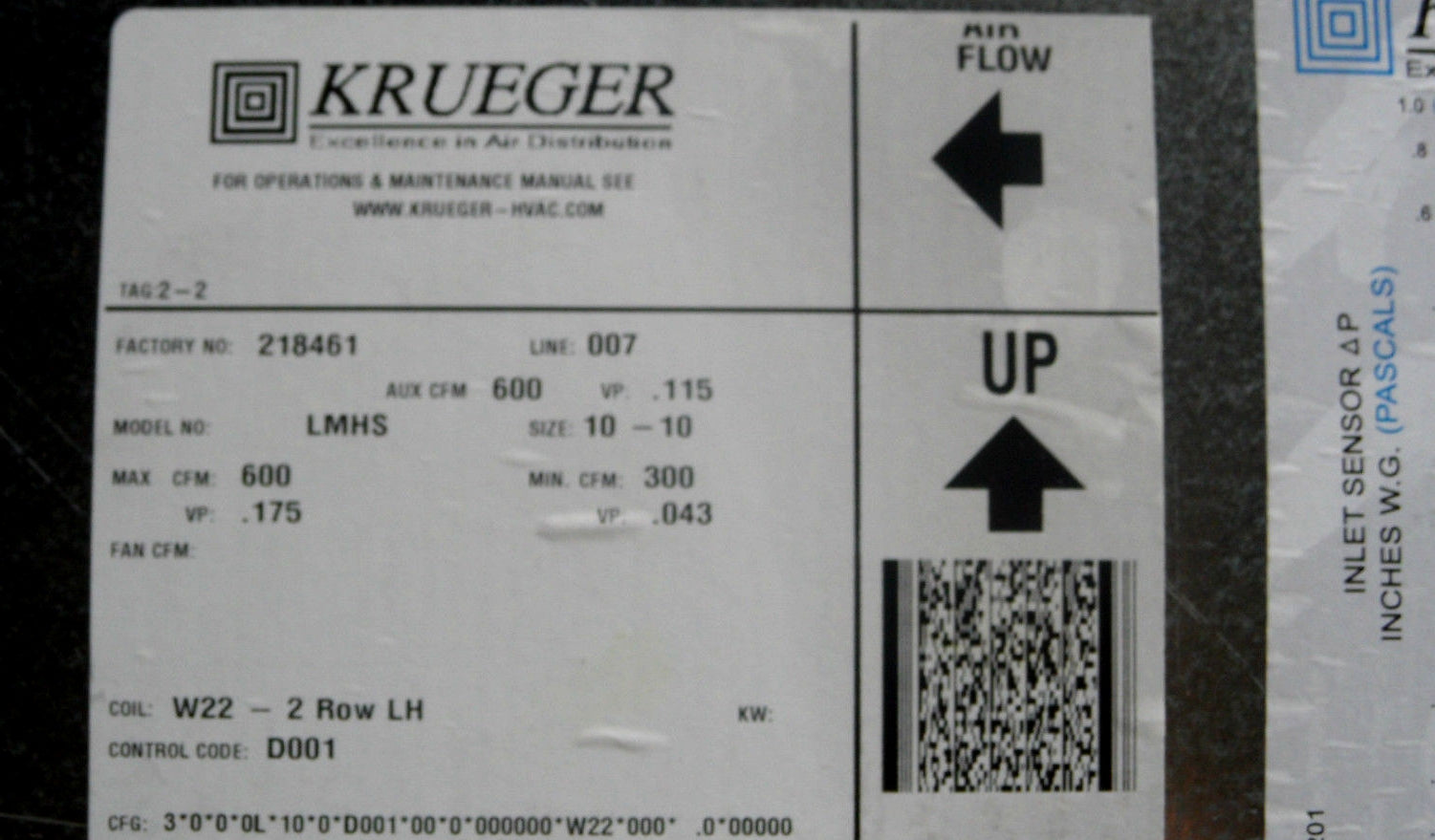

• Size 10-10
• COIL: WW22-2 Row LH
• Control Code: D001
• Factory NO: 218461
• Model No: LMHS
• Line:007
• AUX CFM: 600
• VP: .115
• MIN CFM:300
• VP .043
• MAX CFM: 600
• VP: .176
• 22 Gage Galvanized steel casing construction with a 20 gage casing option that provides strength and product durability.
• AHRI listings for certified performance in accordance with AHRI Standard 880 testing standard. Suitable for low, medium, or high pressure applications; able to operate throughout a wide range of HVAC systems.
• Airflow capacities from 40 to 7000 CFM providing airflow control for most commercial applications.
• Round inlet sizes from 4” through 16” diameter which are slightly undersized to fit standard spiral and flex duct; size 20 inlet is rectangular, 13 1/2”x7 7/8”; size 22 inlet is rectangular, 15 7/8”x23 7/8”.
• Digital, analog, or pneumatic controls with pressure independent or dependent control packages allows tailoring to many building systems.

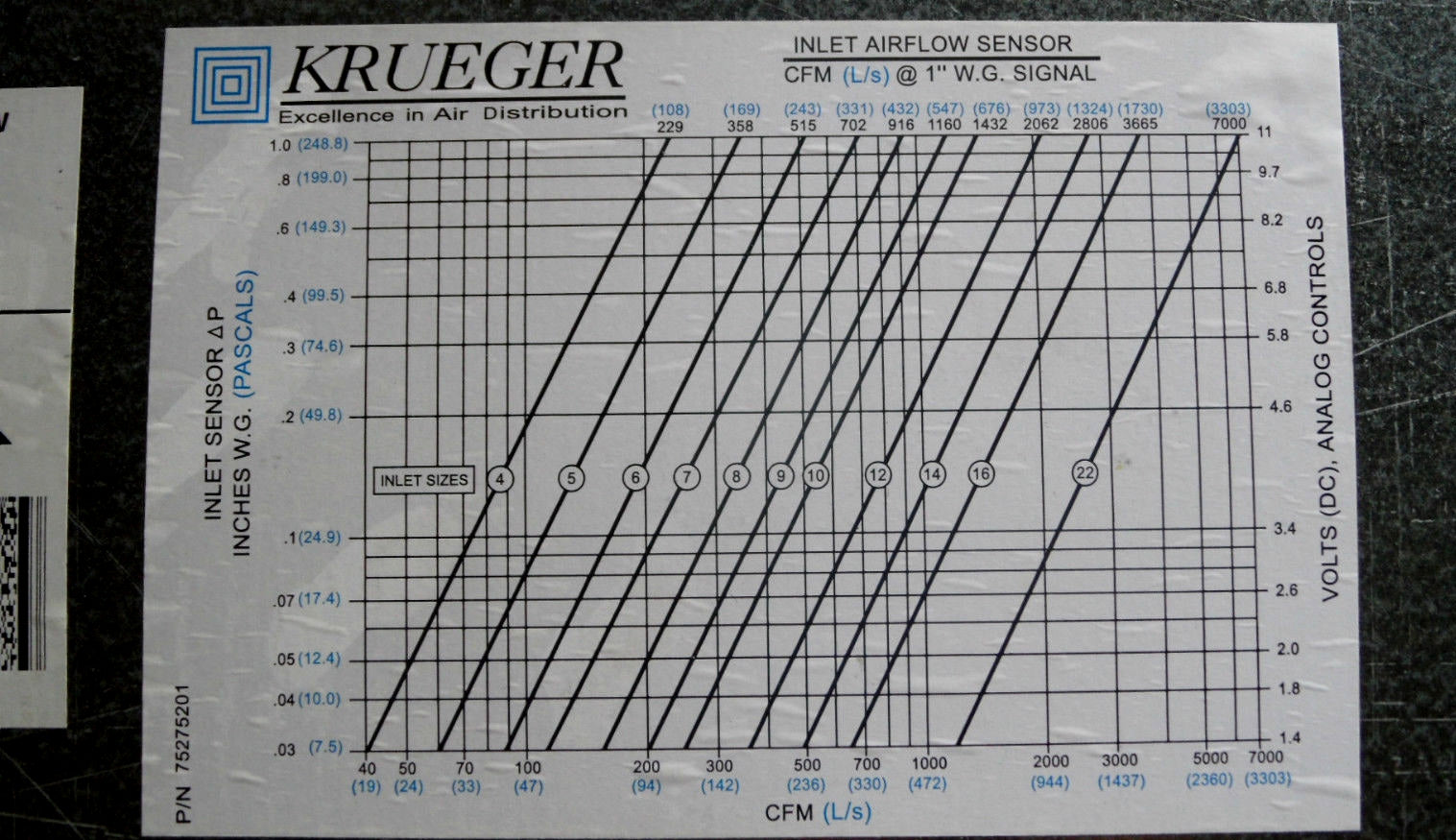

• K4 Lineacross four quadrant, multi-point center averaging sensor or optional linear, multiple-point, averaging velocity sensor, offers low resistance to airflow while providing amplified velocity pressure signal to the controller.
• AC solid state relays offer silent operation for stage electric heat
• AC solid state relays offer silent operation for stage electric heat
