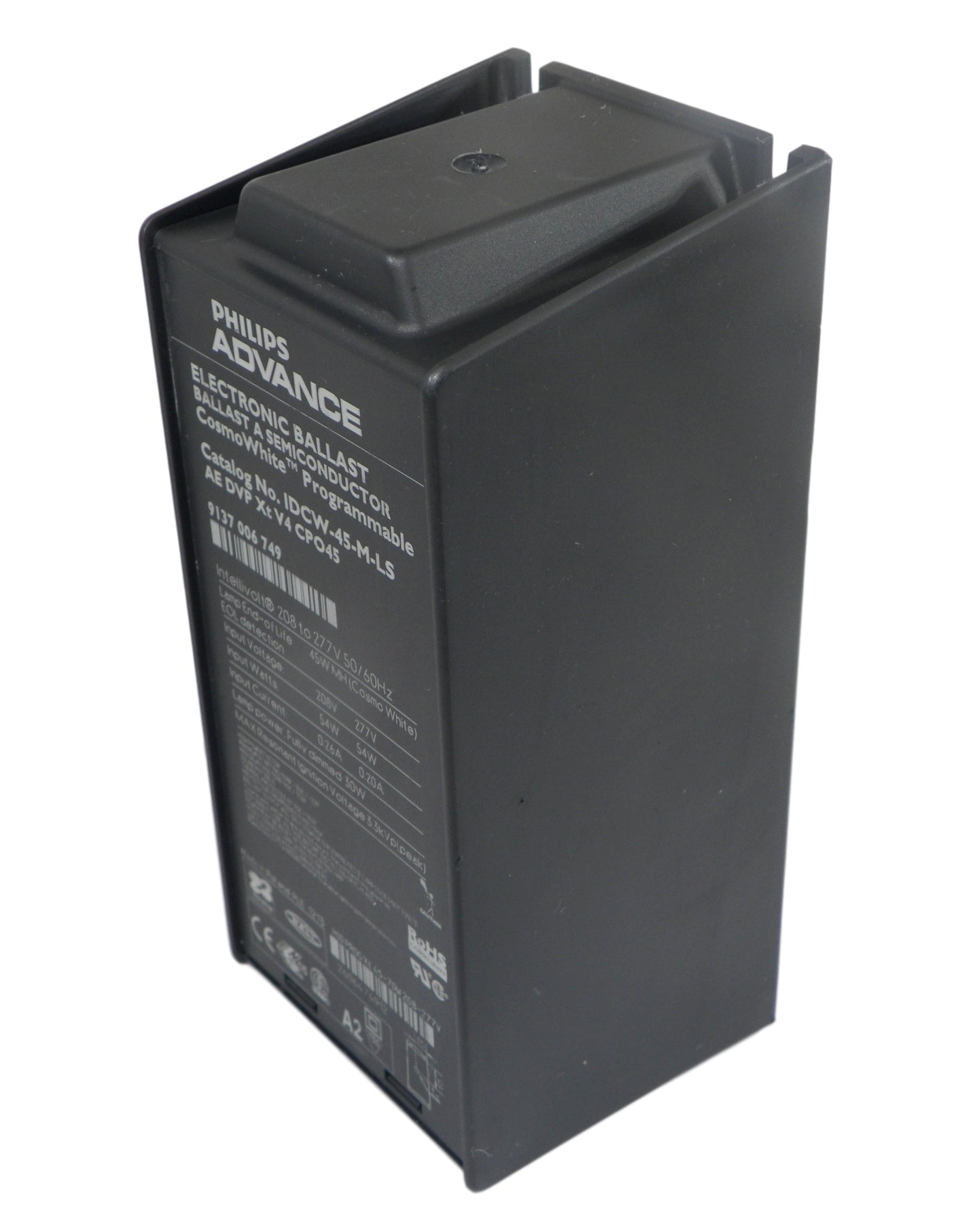

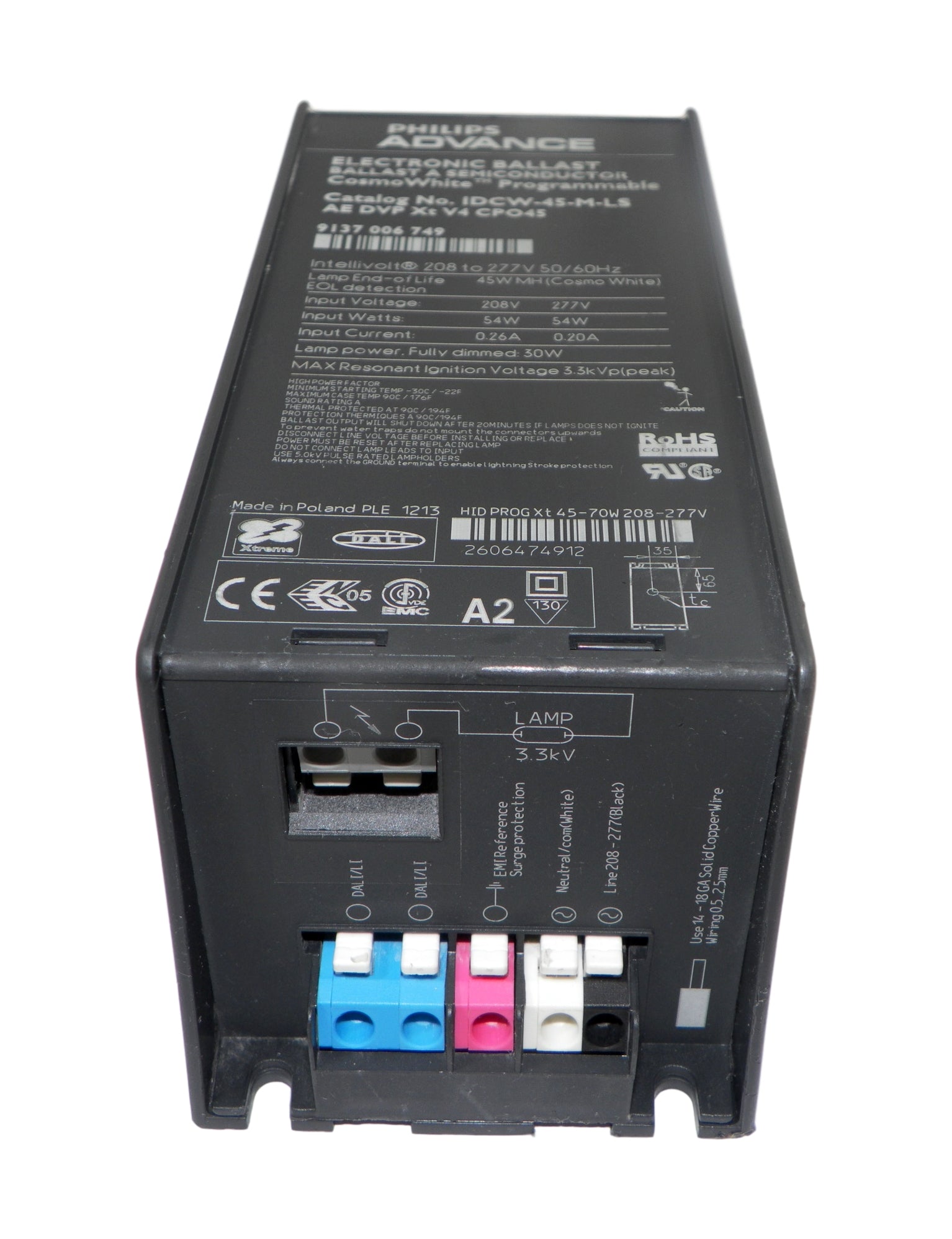

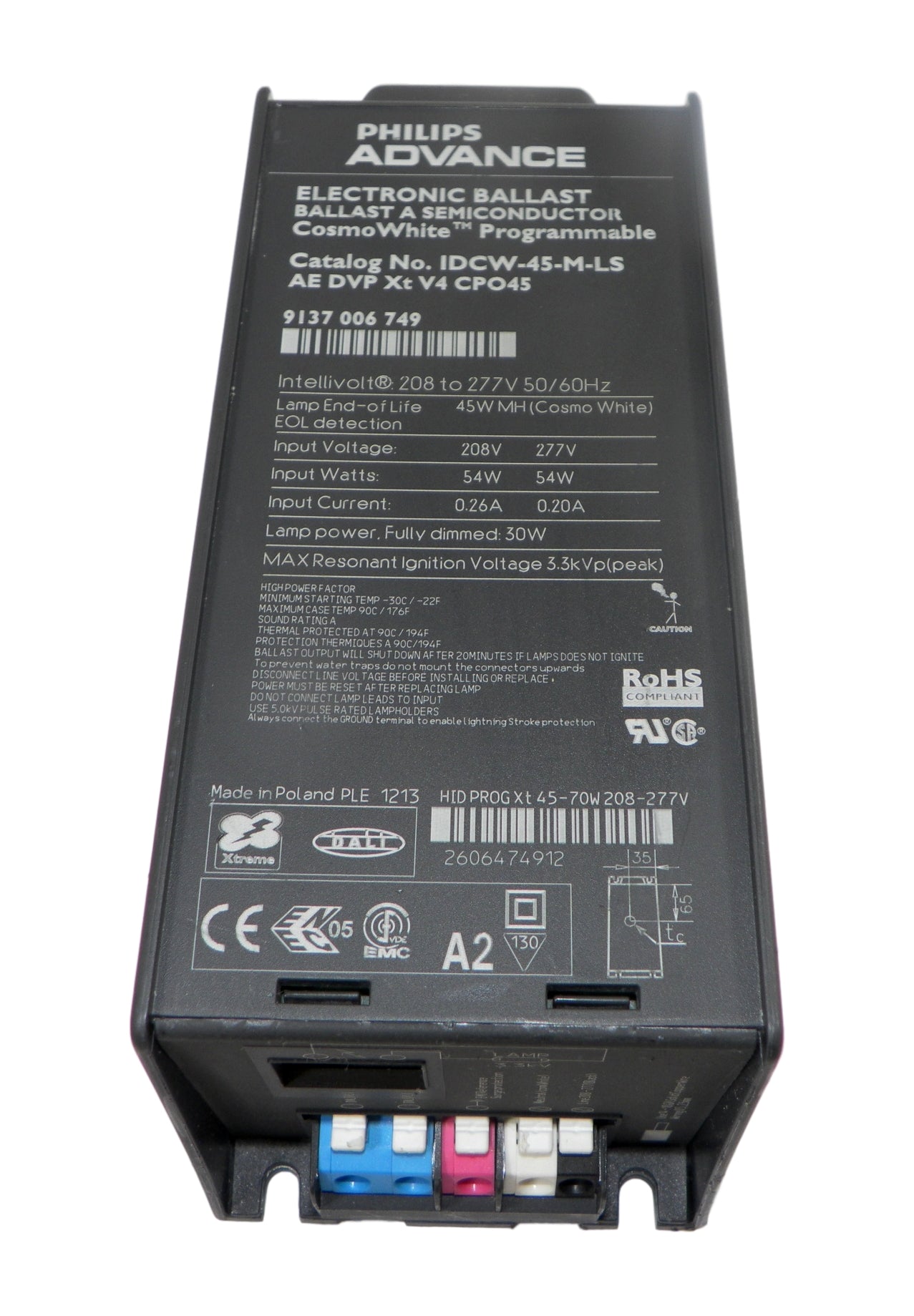

Philips IDCW-45-M-LS Cosmo White Electronic Ballast Intellivolt 208-277V 50/60Hz
Philips IDCW-45-M-LS Cosmo White Electronic Ballast Intellivolt 208-277V 50/60Hz
Philips IDCW-45-M-LS Cosmo White Electronic Ballast Intellivolt 208-277V 50/60Hz

Philips IDCW-45-M-LS Cosmo White Electronic Ballast Intellivolt 208-277V 50/60Hz

Free Shipping

Philips IDCW-45-M-LS Cosmo White Electronic Ballast Intellivolt 208-277V 50/60Hz.

Specifications:
  • Brand name: Philips
  • Catalog Number: IDCW-45-M-LS
  • Voltage: Intellivolt 208-277V
  • Lamp end of life 45W MH (cosmo white) EOL Detection
  • Input Voltage: 208V-277V
  • Input Watts 54W - 54W
  • Input Current: 0.26A - 0.20A
  • Lamp Power Fully Dimmed: 30W
  • Max resonant ignition voltage 3.3kvp (peak)
Applications:
  • Maximum allowable case temperature is 90°C.
  • Resonant ignition is 3.3 kV max
  • To prevent water traps do not mount the connectors upwards
  • Ballast output will shutdown after 20 minutes if lamp fails to ignite
  • Functional Earth (magenta connector) must be connected to large metal plate of luminaire to enable the common mode 10kV transient protection
