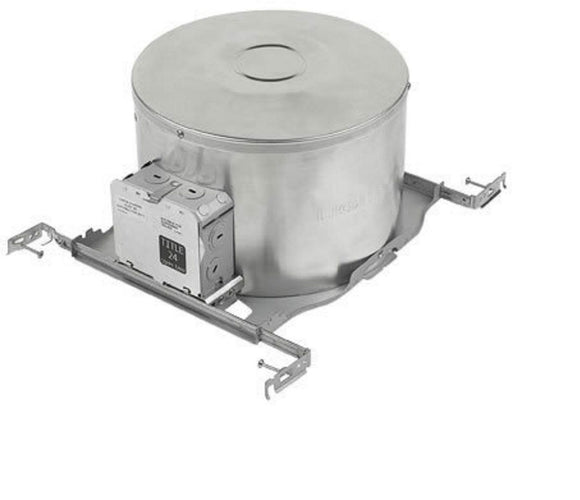

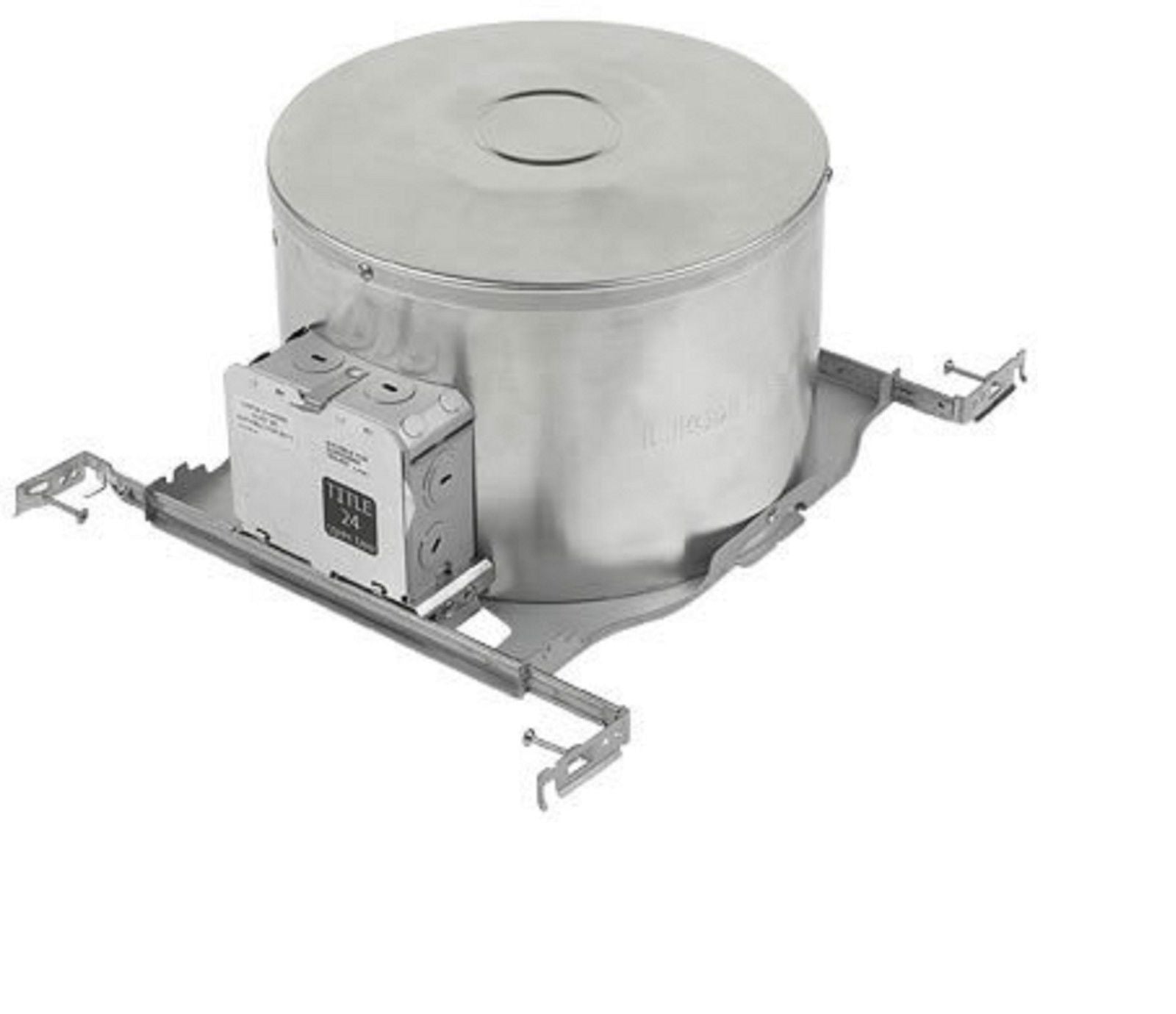

Philips Lightolier 5" IC Frame-In Kits Compact Fluorescent 1001FDICMX1N
Philips Lightolier 5" IC Frame-In Kits Compact Fluorescent 1001FDICMX1N

Philips Lightolier 5" IC Frame-In Kits Compact Fluorescent 1001FDICMX1N

Free Shipping

Ightolier 5 IC Frame-In Kits - Compact Fluorescent Part Number 1001FDICMX1N

CLOSE OUT PRICING FOR THIS ITEM LOWEST PRICE you will have ever seen for this Clearing out my inventory

PERFORMANCE IC 5 MARK X -26W/120V. 5 Aperture, 1 Light, Compact Fluorescent, IC AirSeal®, Dimming, Frame-In Kit

Fixture Type: Performance IC Dimming Mark10 120v Nail

Product inforations

  • Housing: .028 (21ga.) aluminum. UL listed for direct contact with thermal insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and Washington State Energy Code (Section 502.4) and reduces heat loss and condensation in ceiling. Access door for inspection of junction box.
  • Mounting Frame: .032 (22 ga.) galvanized steel. Accommodates ceilings up to 1 1/2 thick. 3/8 deep integral lip. Locks into position along length of mounting bars with locking screw and bendable slot. Four slots are positioned 90 apart to simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.
  • Junction Box: 2 X 4 X 3 1/2 (22 cu. in) .032 (22 ga.) galvanized steel. UL listed for maximum of 8 (12 ga.) 90C through branch circuit conductors.
  • Mounting Bars: .059 (16 ga.) galvanized steel.
  • Ballast: Mounted inside housing. 120V or 277V UL Listed Electronic Dimming Ballast, end of lamp life protection, class “P” thermally protected, class “A” sound rating.
  • Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18 AWM leads to ballast.
  • Socket Housing: .036 (20ga.) Galvanized Steel housing attaches to reflector trim by spring clip for precise optic alignment.
