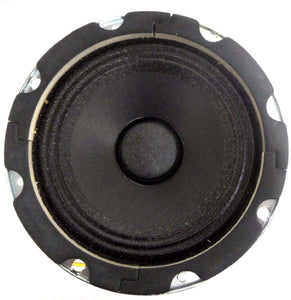

Electro-Voice 205-8T 10-Watt 4" Ceiling Loudspeaker 70.7V/100V Transformer
A Electro-Voice 205-8T 4" Ceiling Speaker 8W 70V.
Features & Specs:The Electro-Voice 205-8T is a 4-inch dual-cone, 10-watt, full-range installation ceiling loudspeaker with a 70.7V/100V matching line transformer. The acoustically transparent dome encloses a small, centrally mounted free-edge cone, for improved high-frequency speech or music dispersion. The speaker is suitable for applications requiring high-intelligibilty speech, or smooth musical reproduction in commercial installations.

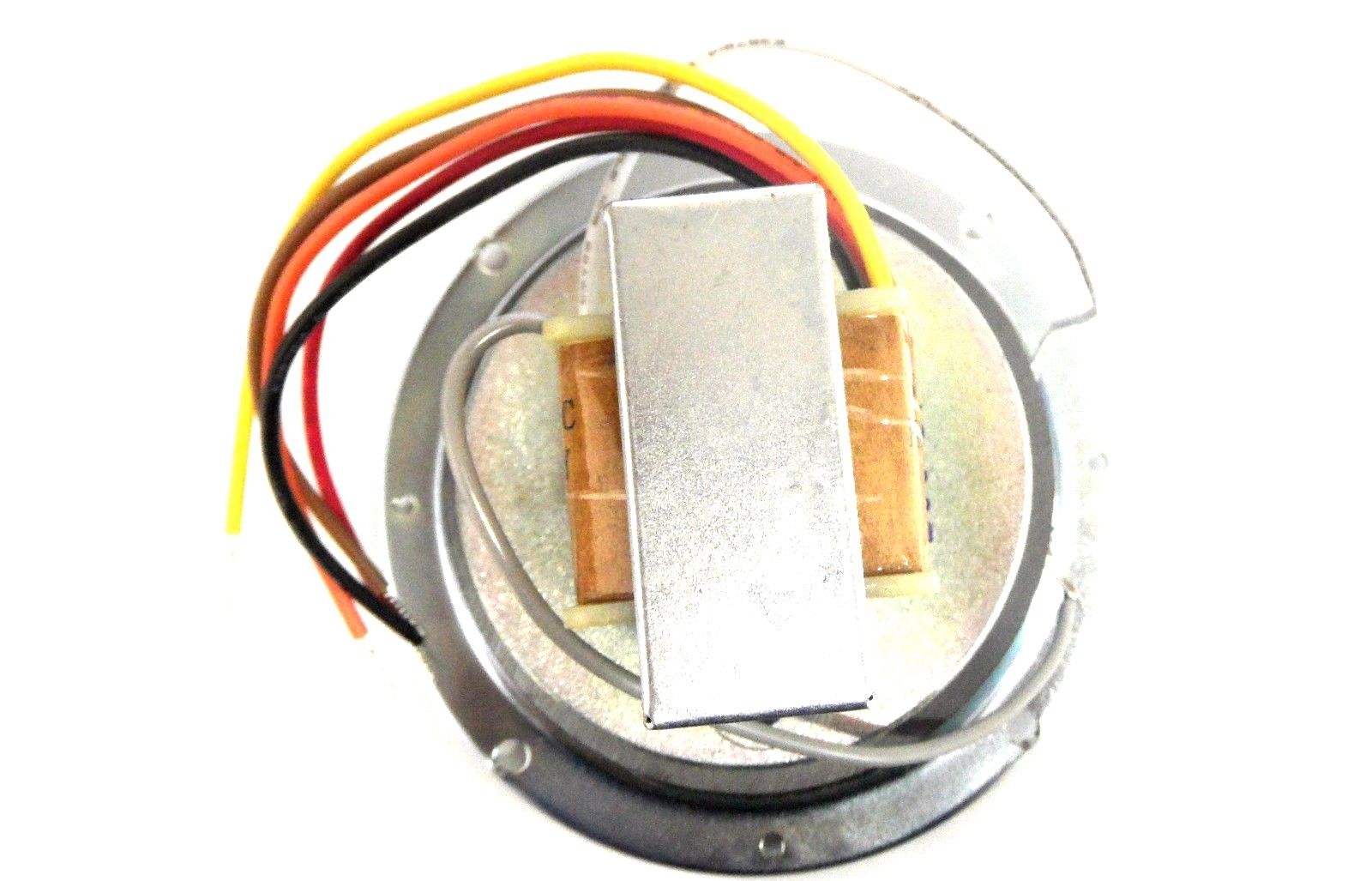

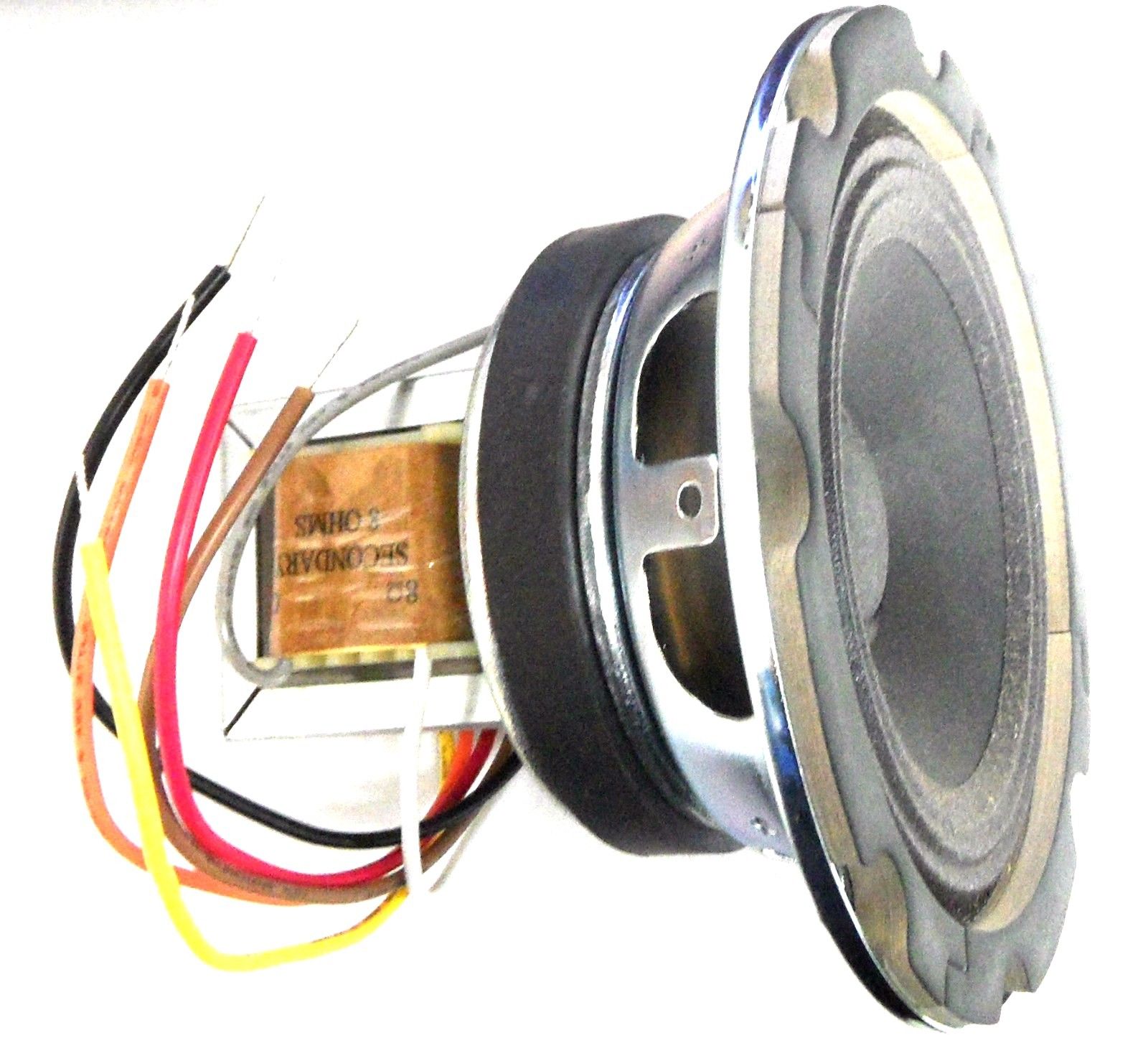

10-watt, 4" full-range ceiling component loudspeaker with 1.0" voice-coil and 70.7V/100V line transformer
Transformer power taps include 1W, 2W, 4W and 8W for 70.V/100V lines
Dust protection via integral dust dome
- Frequency Response: 90 Hz - 18 kHz +/-5dB
- Maximum Power Handling: 10 Watts
- Impedance: 8 Ohms
- SPL: 101dB SPL @ 1m
- Beamwidth: Not Applicable
- Horizontal Beamwidth: Not Applicable
- Vertical Beamwidth: Not Applicable
- Directivity: Not Applicable
- Construction: 22-gauge stamped steel frame with black finish
- Magnet: Weight: 0.72 lb (0.32 kg)
- Material: Barium Ferrite
- Voice Coil: 1.0" (25.4mm)
