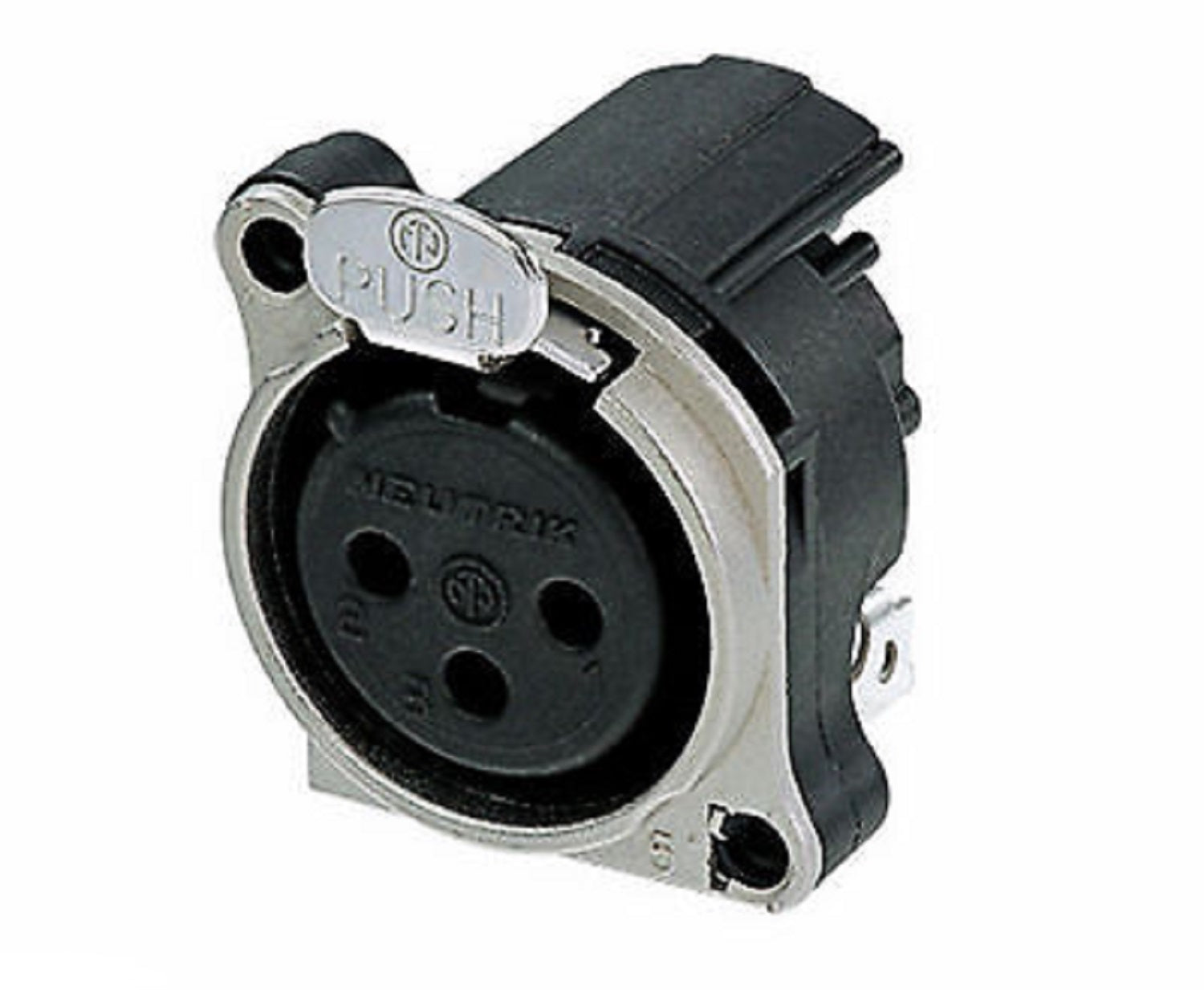

Neutrik NC3FBH1 3-Pole Female XLR Receptacle Connector
Neutrik NC3FBH1 3-Pole Female XLR Receptacle
Electrical:- Capacitance between contacts: 4 pF
- Contact resistance: ≤ 5 mΩ (inner)
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 6 A
- Rated voltage: 50 V
- Grounding Options: Pin 1 connected direct to front panel and connector shell, no separate ground contact
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiring: Horizontal PCB mount
- Locking device: Latch lock
- Mounting direction: rear
- Chassis shape: B
- Mounting: B-Screw
- 3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
- Smallest XLR receptacles, highest packing density
- Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
- Tulip type female contact
- Housing flammability UL94V-0
