Song Chuan 896H-1CH-S-R1 Automotive Relay Quick Connect 12VDC 50AMP

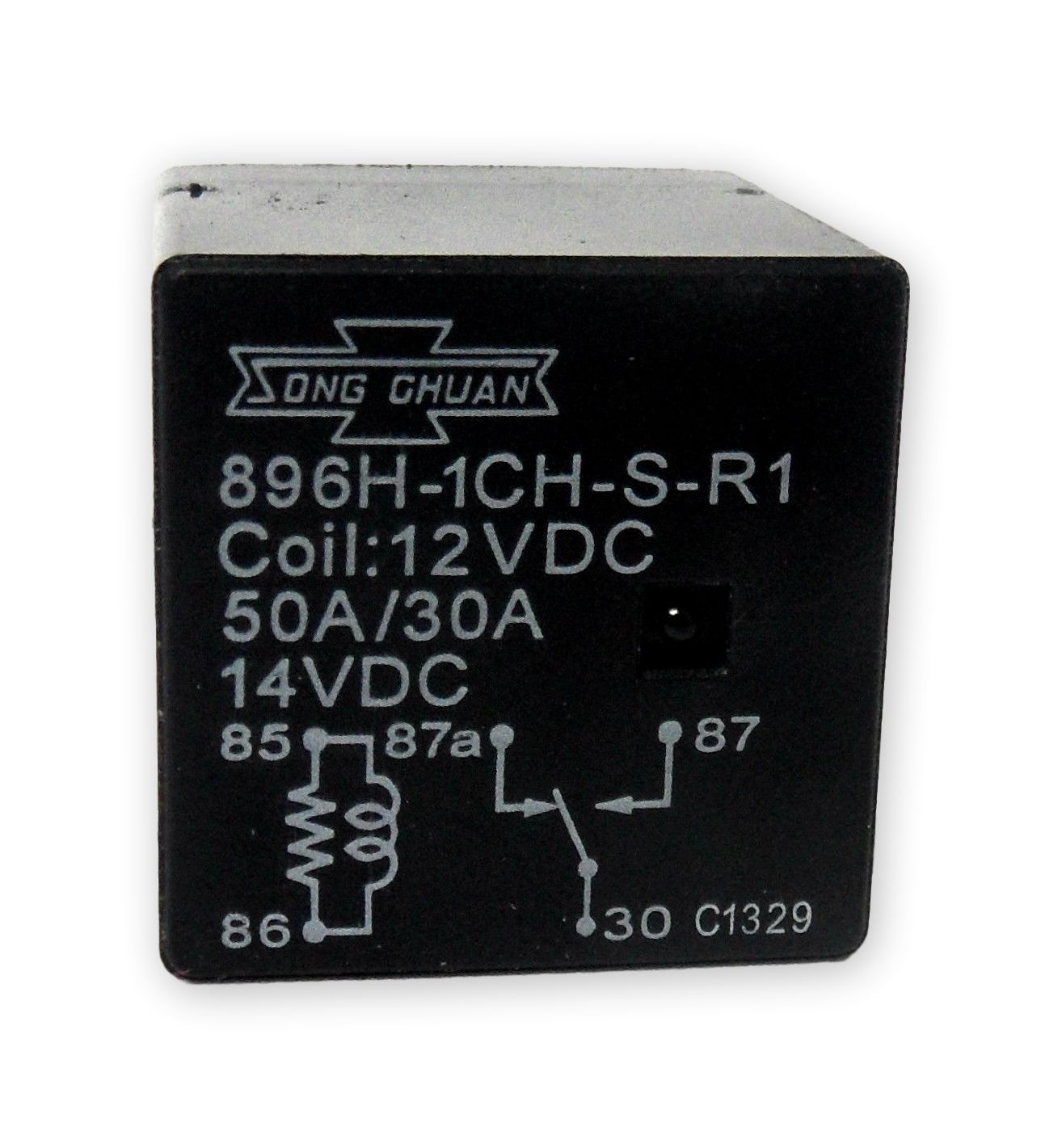

Song Chuan brand Model 896H-1CH-S-R1 Automotive Relay Quick Connect 12VDC 50AMP.
Specifications:- DC Coil Voltage: 12 V
- AC Coil Voltage: N/A
- Maximum Current Rating: 50(NO)/30(NC) A
- Maximum Power Rating: N/A
- Maximum DC Voltage Rating: 14 V
- Maximum AC Voltage Rating: N/A
- Relay Construction: Non-Latching
- Type: Automotive Power Relay
- Contact Arrangement: SPDT
- Pin_Count: 5
- Mounting: Socket
- Coil Current: 133 mA
- Coil Resistance: 90 Ohm
- Termination Style: Quick Connect
