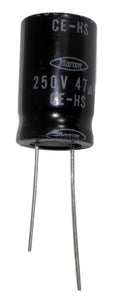

Marcon CEHSM2E470M3 Radial Electrolytic Capacitor 47uF 250V 20% Tolerance
Marcon CEHSM2E470M3 Radial Electrolytic Capacitor 47uF 250V 20% Tolerance
Specifications:- High Ripple
- High Frequency
- Capacitance: 47uF
- Rated Voltage: 250V
- Tolerance: 20%
- Temperature: 105°C
- Impedance (20°C/120kHz): 0.15 ohm (max.)
- Ripple Current (100kHz @ 105°C): 710mA
- Brand Name: Marcon
- Part Number: CEHSM2E470M3
- Capacitance: 47UF
- Voltage: 250
- Tolerance: 20%
- Mounting: Through Hole
- Lead/Terminal Type: Radial
- Number Leads/Terminals: 2
- Color: Black
- Temperature: 105°
- RoHS Compliant: Yes
- Shape: Round (Cylindrical)
- Termination Method: Solder
