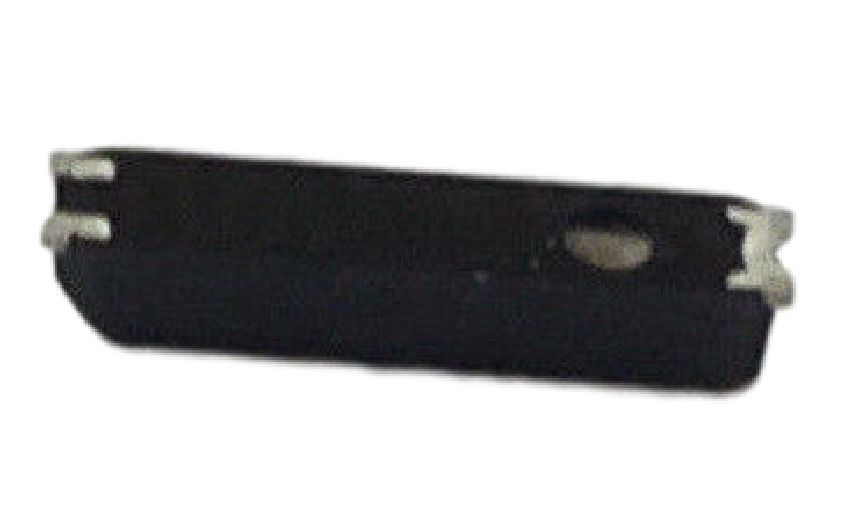

Seiko Instruments SSP-T7-F 32.768KHZ 9pF Semi-Conductor (25)
Seiko Instruments SSP-T7-F 32.768KHZ 9pF Semi-Conductor (25)
Please independently check the compatibility
- Thin type with height 1.4mm Max.
- SMD type suitable for automatic & high density surface mounting.
- Plastic mold package containing highly reliable tubular type quartz crystal.
- Excellent shock and heat resistance.
- Halogen free
- Complies with EU RoHS directive

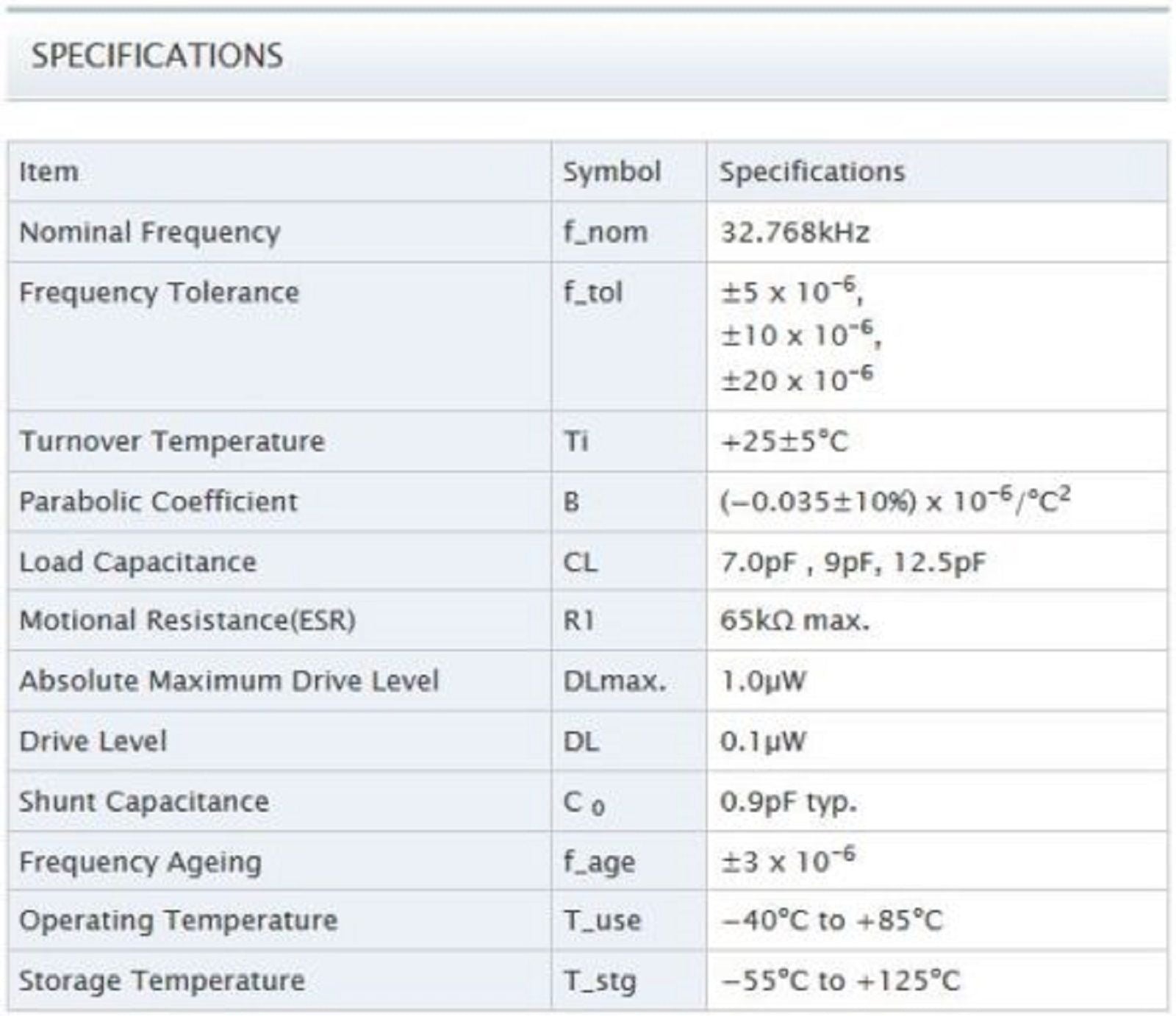

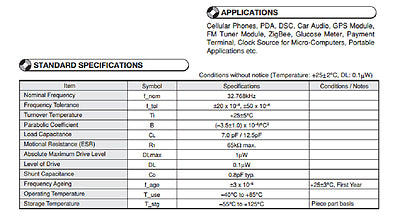

- Manufacturer: Seiko Instruments
- RoHS: RoHS Compliant Details
- Termination Style: SMD/SMT
- Package / Case: 7 mm x 1.5 mm
- Load Capacitance: 12.5 pF
- Frequency: 32.768 kHz
- Tolerance: 20 PPM
- Frequency Stability: -
- Operating Temperature Range: - 40 C to + 85 C

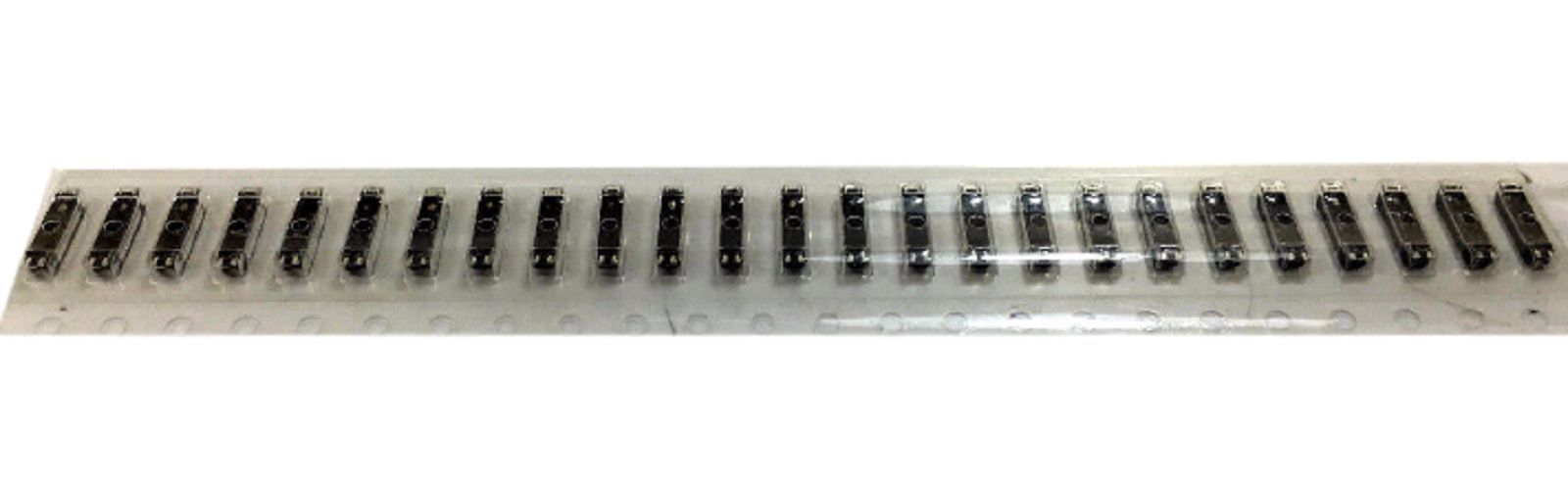

- Packaging: Reel
- Series: SSP-T7-F
- Length: 7 mm
- Width: 1.5 mm
- Height: 1.4 mm
- Diameter: -
- Brand: Seiko Instruments Micro Energy
- Drive Level: 0.1 uW
- ESR: 65 kOhms
- Lead Spacing: -
- Mounting Style: SMD/SMT
- Type: kHz Crystal
- Unit Weight: 0.010582 oz
These semiconductors work with devices that have clocks in Real-Time, such as.
- Cellular Phones
- PDA
- DVC
- Radio Communication Equipment
- Portable Applications etc.
