Erickson CV50BSMC200240 CV 2 Shell Mill Adapter
Erickson CV50BSMC200240 CV 2 Shell Mill Adapter

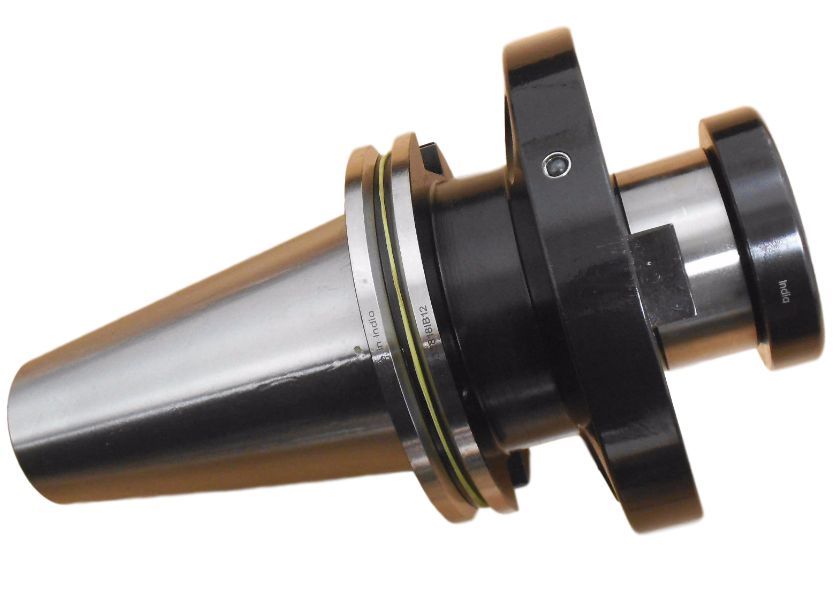

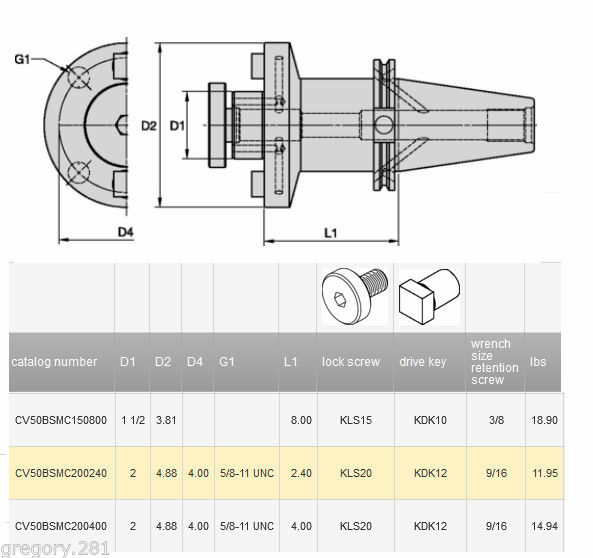

This sale transaction is for a Erickson brand CV2 Shell Mill Adapter as shown in the photos. (Also see photo for measurements)
NOTE: Item has grease on it to prevent any type of rust & corrosion.
Features:
The tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 12,000 RPM
For applications higher than 12,000 RPM WIDIA recommends the complete toolholder assembly be balanced as one Max coolant pressure 1,500 PSI
Taper Accuracy AT3
All tools set to form AD coolant specification, however, many can be converted to Form B style
This sale transaction is for a Erickson brand CV2 Shell Mill Adapter as shown in the photos. (Also see photo for measurements)
NOTE: Item has grease on it to prevent any type of rust & corrosion.
Features:
- Connection Thread Size: 1"-14 UNS
- Bolt Circle Thread Size: 5/8"-11 UNC
- ANSI Catalog Number: CV50BSMC200240
- ISO Catalog Number: CV50BSMC200240
- Adapter/Shank/Bore Dia-Workpiece Side (in): 2.0000
- Adapter/Shank/Bore Dia-Workpiece Side (mm): 50.800
- Body Dia-Workpiece Side (in): 4.8800
- Body Dia-Workpiece Side (mm): 124.000
- Gage Length (in): 2.4000
- Gage Length (mm): 60.960
- System Size Machine Side: CV50
- Usable Length (in): 2.4000
- Usable Length (mm): 60.960
- Pilot Length (in): 0.9380
- Unit of Tool: Inch
- Style: Screw-On Form B/AD
- Type: Taper Shank Shell Mill Adapter

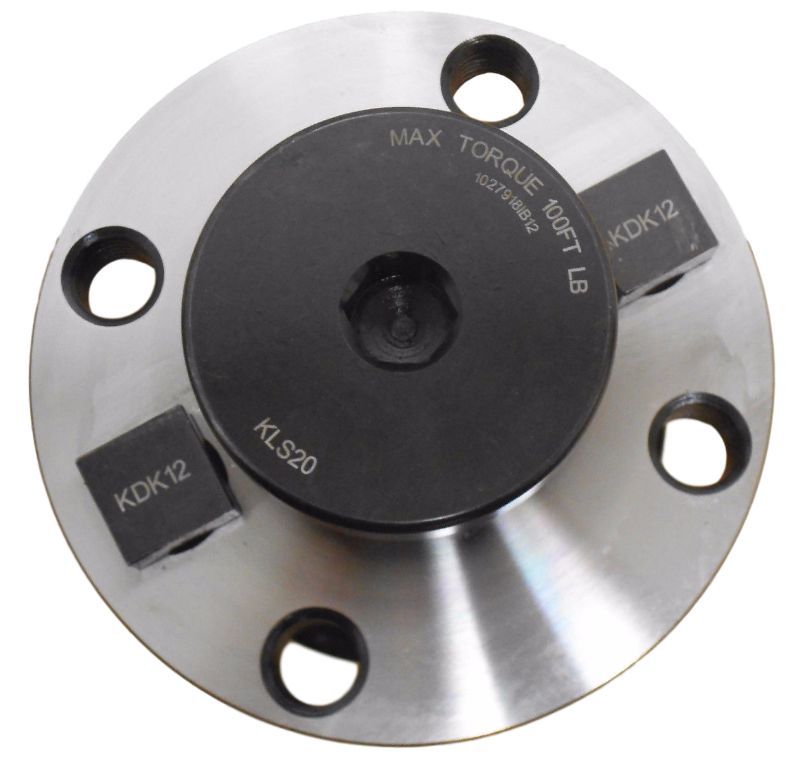

- Torque: 100 ft/lb / 135 Nm
- Product Weight: 12.6324 lbs.

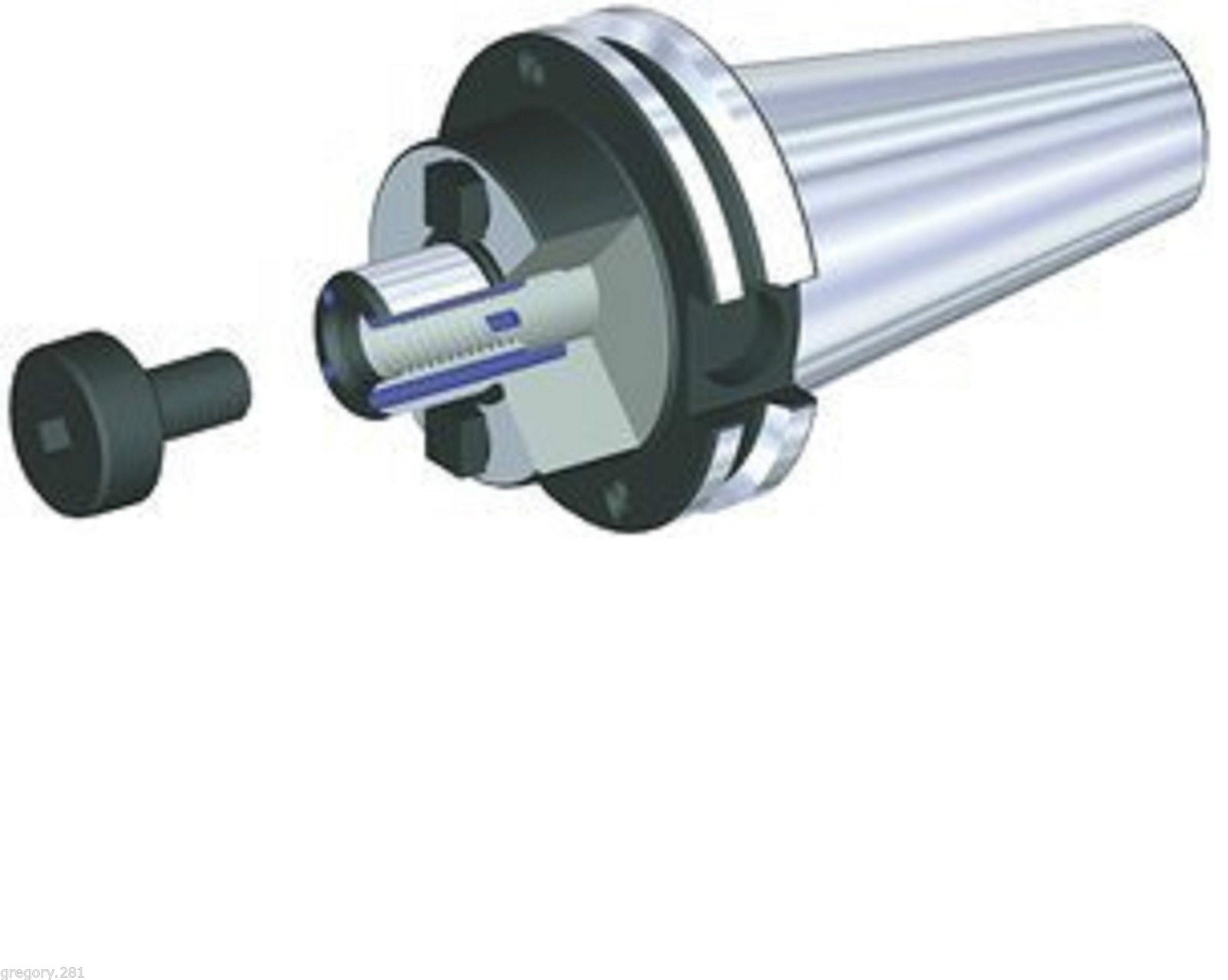

- Applications: Used in milling applications; a shell mill is mounted to the adapter where drive keys located on the face of the adapter drive the cutter.
- Notes: CV50 Shank Tools
The tools are either prebalanced to a high specification or balanced-by-design and will perform effectively up to 12,000 RPM
For applications higher than 12,000 RPM WIDIA recommends the complete toolholder assembly be balanced as one Max coolant pressure 1,500 PSI
Taper Accuracy AT3
All tools set to form AD coolant specification, however, many can be converted to Form B style
