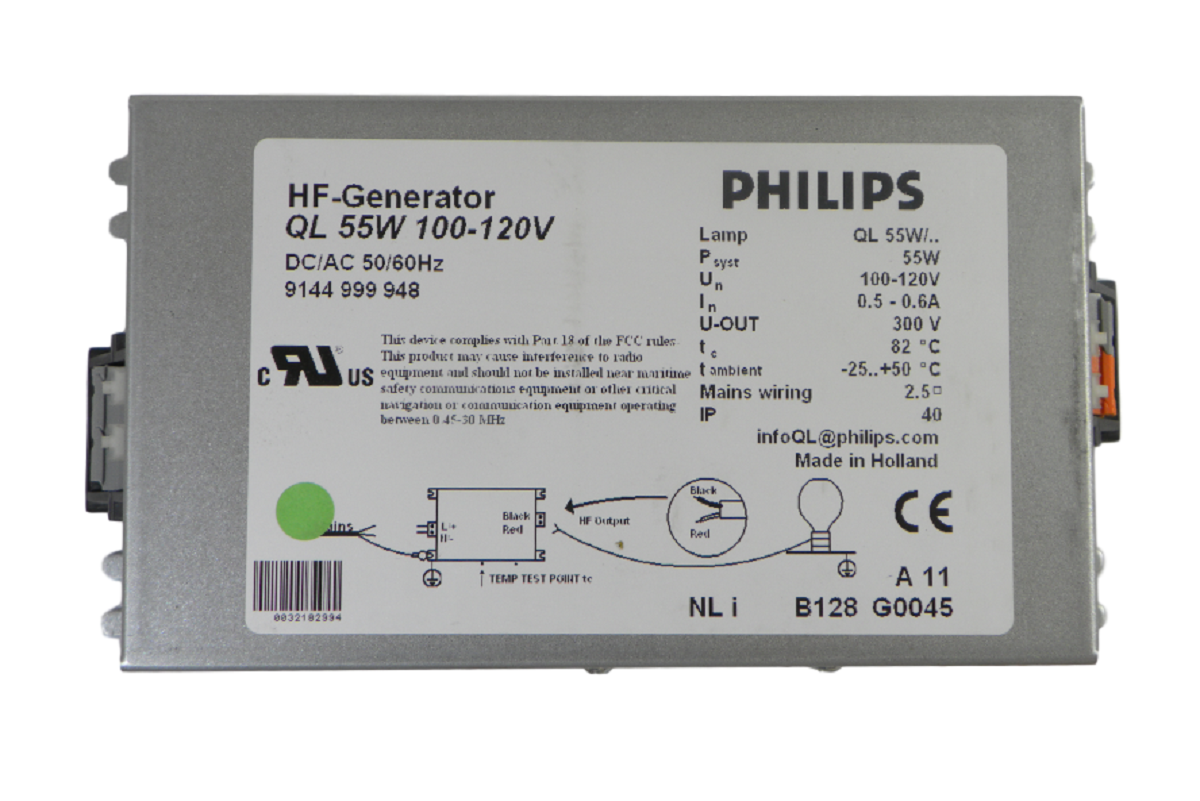

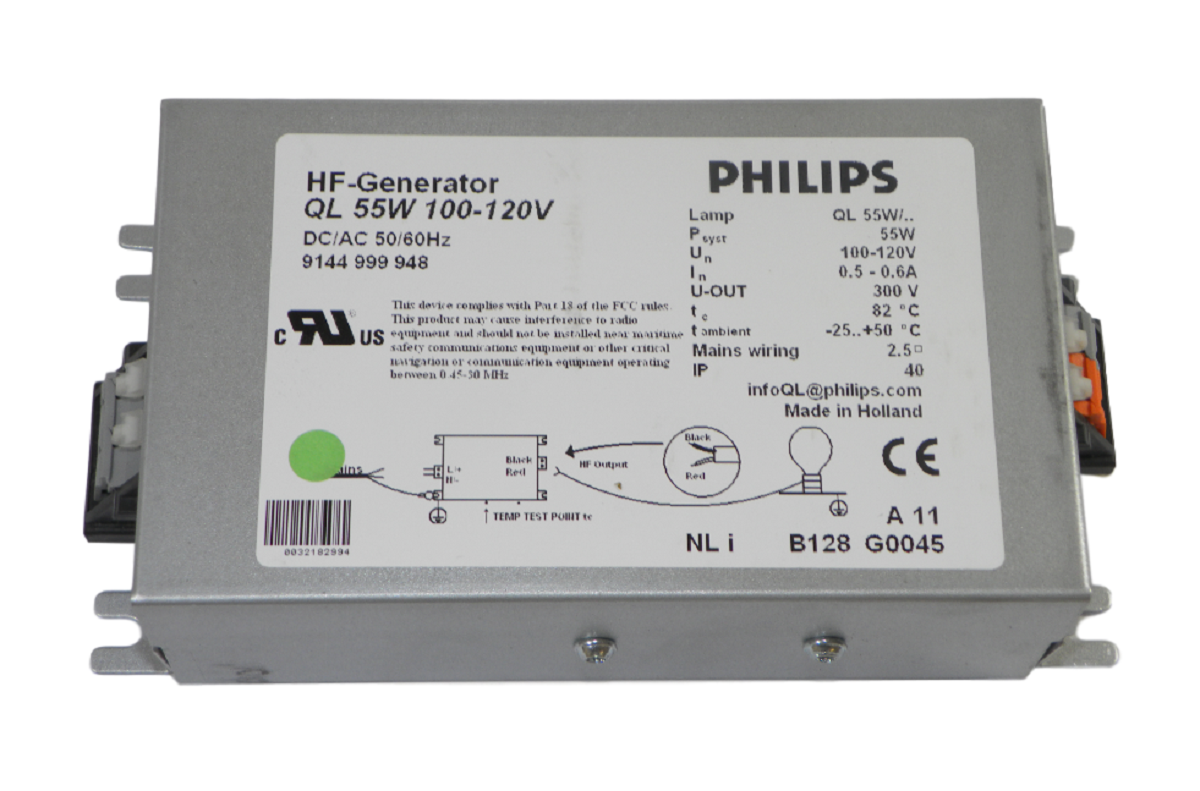

Philips GE05512001 55 Watt QL Induction Lighting 120 Volt Generator Only
Philips GE05512001 55 Watt QL Induction Lighting 120 Volt Generator Only.
Features:- High reliability
- Instant hot and cold (re) start
- Operates in hot and cold environments
- Dimmable to 50%
- Can operate on both AC and DC power
- Power Factor Correction and limited inrush current
- Protection lamp end of life
- Extended protection against mains faults and deviations
- Manufacturer Philips
- Product Number: GE05512001
- Voltage: 100 to 120 Volt
- Amps: 0.5 - 0.6A
- Temperature: 82°C
- Temp Ambient: -25..+50°C
- Watts: 55
- Mains Wiring: 2.5
- IP: 40
- Base Type: Twist on Base
- Size: 6 L x 3 W x 1.6 H inches
- Rated Average Life: 80,000 Hours +
- Energy Star Qualified: No
- Dimmable: Yes
- Ordering Code: 55 watt QL Generator
- Lifetime system 80.000 hrs at Tc=72°C
- Efficiency > 90%, max. load
- Cooling convection, dependent on system set-up, heat sinking required
- Tcase 82°C max (72°C for full life)
- Storage -40°C to +85°C
- Operating temp. -40°C to +55°C ambient
- Operating position Universal
- Safety approvals C-UL-US and CE
- EMC approvals Complies with all international EMC requirements
- Input line freq. 45 - 66Hz
- Power Factor > 0.98
- Current THD ANSI C82.11-2002
- Output Voltage 130 - 220 Vac
- Switching freq. 2.67 MHz ± 8%
- Current nom. Depending on lamp
- Run-up/short 1.8 x Inom
- Dimming EN60929, 1-10 Vdc analog, 50-100% output power
