Vector 3HP 2.2KW 50Hz 60Hz AANDRIJFTECHIEK DRS90L2BE2 FI100L 9013726960010001101

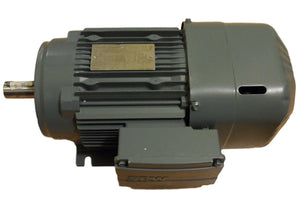

Vector 3HP 2.2KW 50Hz 60Hz AANDRIJFTECHIEK DRS90L2BE2. While this motor has many applications, it is often applied in cooling towers. Please see the key way on the shaft. This is a heavy duty motor weighing in at close to 62 pounds

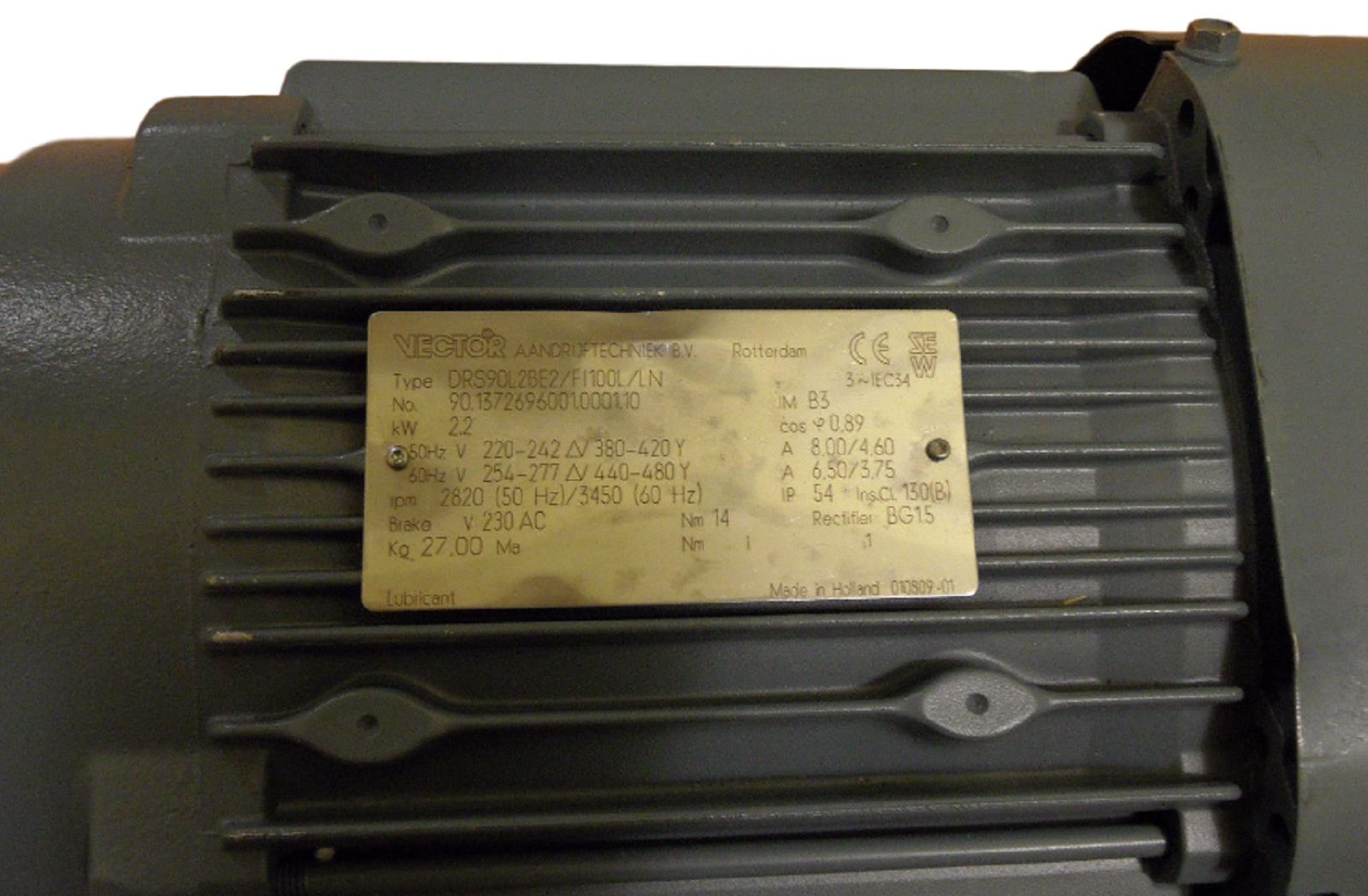

Information from the tag on the moter:- DRS90L2BE2/FI100L/LN
- NO. 9013726960010001101
- KW 2.2
- 50 Hz 220-240/380-420y volts
- 60 Hz 254-277/440-480y volts
- Rpms 2820 (50 hz)/3450 (60 hz)
- Brake 230 V AC
- KG 27.00 MA
- Rectifier BG1.5im b3
- The shaft extends out from the motor approximately 2-5/16 with a an external key
- The diameter (O.D.) of the shaft is 1-1/16 (give or take about 1/64)
- The center of the shaft has female threads
