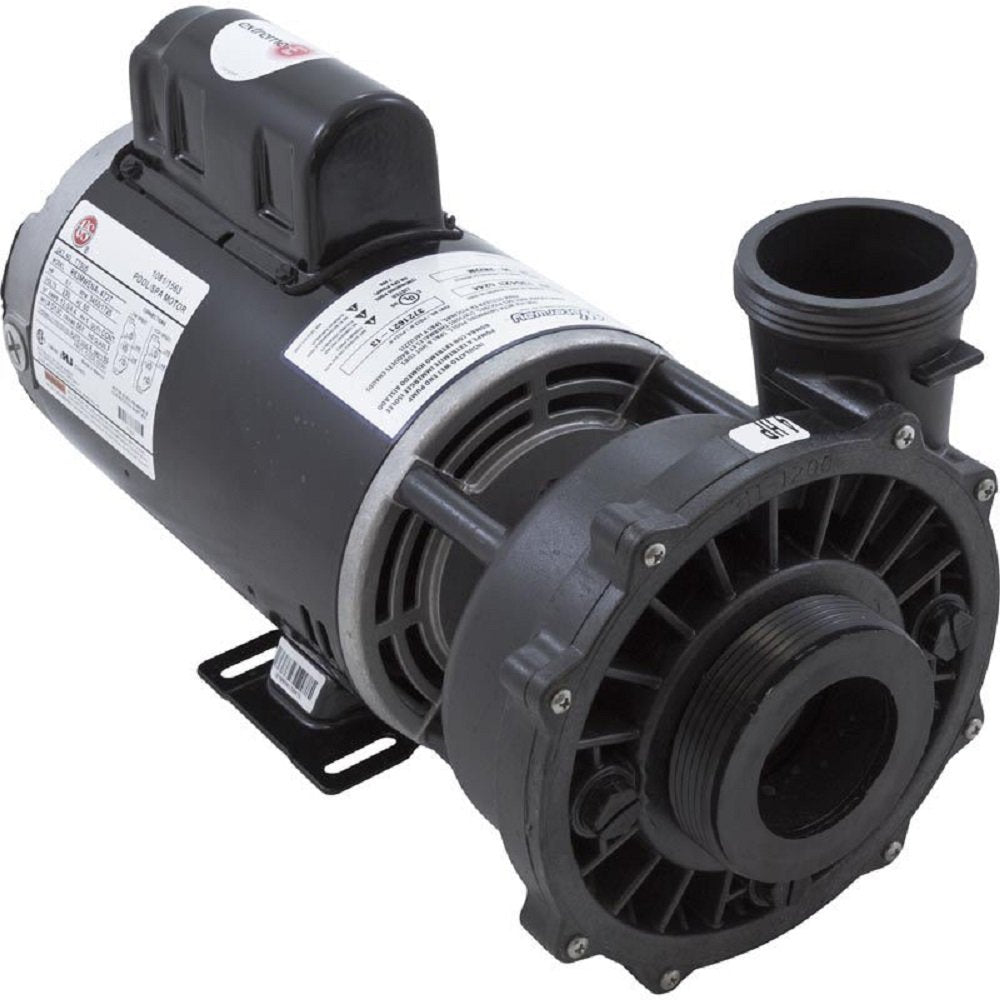

Waterway 3721621-13 4HP 230V 2-Speed 56 Frame Executive Pump
Waterway 3721621-13 Pump 4HP 230V 2-Speed 2.5" Executive 56-Frame.
The Executive Pump from Waterway is designed to be versatile, durable and efficient. It can be used with all types of hot tubs and has specially designed wet end that provides efficient water flow and it can be rotated every 90 degrees for added versatility. The 56 frame motor runs quietly for a more pleasant hot tub experience and is thermally protected for added protection.
Features:- 56 Frame Motor for improved reliability
- Increased strength and cooler operating temperatures
- Quiet operation
- Dual double shielded ball bearings with moisture resistant grease.
- Large pump/wet end for higher head pressure
- Thermally protected motor for greater protection and longevity
- 4 Horsepower
- Two Speed
- 230 Volt, 56 Frame Motor
- Executive wet end designed specifically for 56-frame motors
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Two speed motors have four sets of insulated windings for increased efficiency
- 56-frame motor for added strength, cooler operating temperature and longer motor life
- Large 2.5" intake for improved flow performance and reduced noise
- Large 6.5" diameter wet end for higher head pressure
- Split capacitor, (start and run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90°
- seals
- Three year warranty on motor and wet end
- HP-Full 4
- Volts 230
- Amps High Speed 12.0
- Amps Low Speed 4.4
- HZ 60
