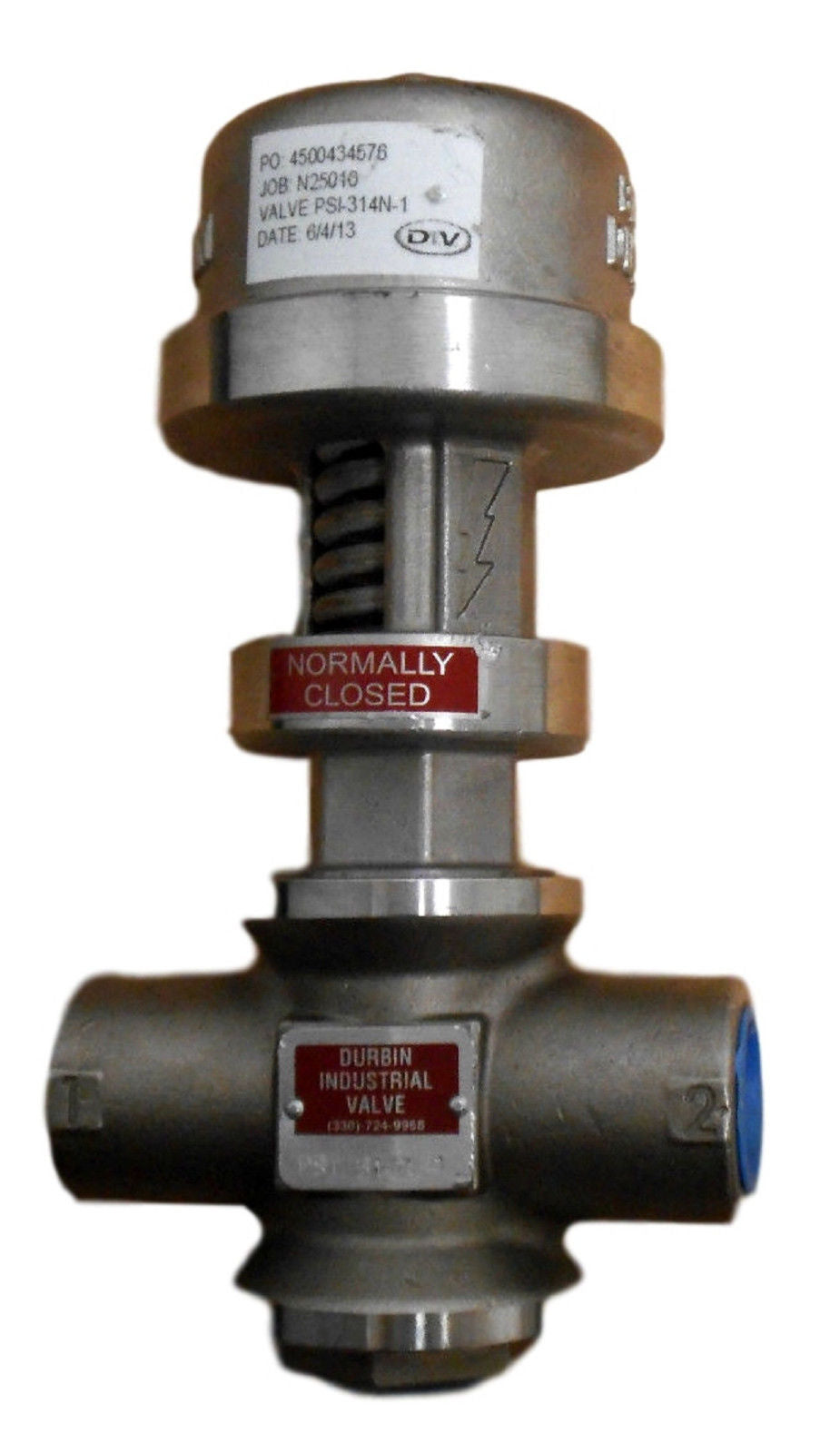

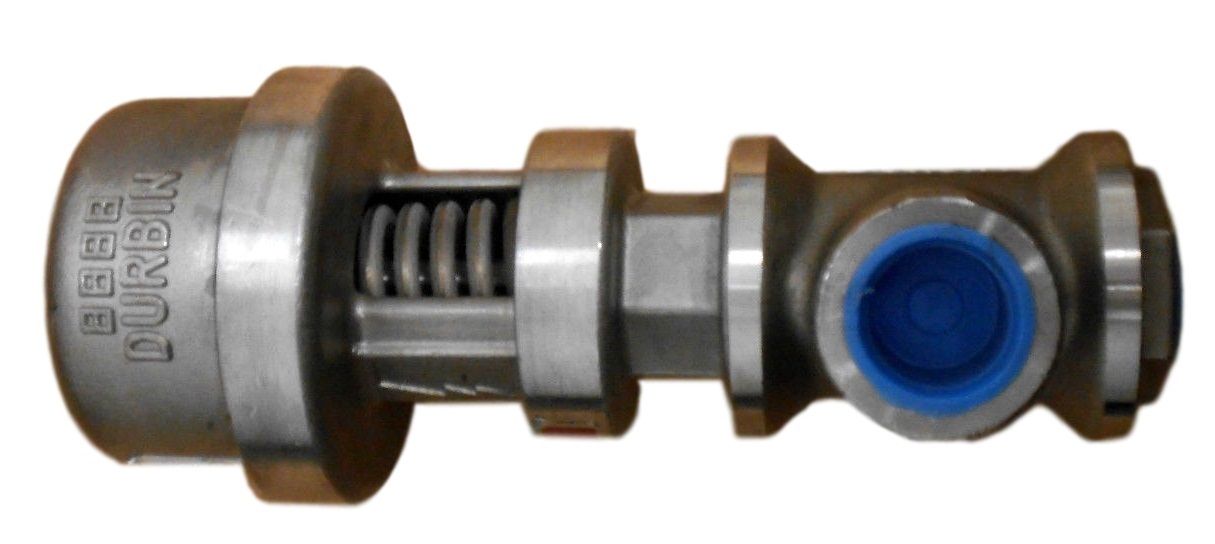

Durbin PSI-314N-1 - 3-Way Top Cylinder Industrial Valve - 3/4" NPT - 40 PSI

Durbin brand 3-Way - Top Cylinder Industrial Valve - 1 FPT

• Air, cold water, hot water, inert gases, steam, or vacuum service
• Features:
• Soft Seated, Class VI positive shut off valve
• Pneumatically operated directional valve
• System pressures: up to a maximum of 500 psi (34 bar)
• Pilot air pressure range: from 40 psi to 100 psi (2.8 bar to 6.9 bar)
• Offered in 2 Way Normally Open, 2 & 3 Way Normally Closed
• Available ports in Standard NPT & BSP threads, fl anged style, manifold style, and union body
• upon request
• System temperature ranges -40F to 450F (-40C to 231C)
• Wetted components constructed of cast & machined corrosion resistant stainless steel
• Engineered sealing edge meets highest ANSI/FCI 70-2 Class VI leakage rate standards
• Benefits:
• Re-buildable valve; rebuild services offered by Durbin Industrial Valve, Inc., or field serviceable with Durbin Industrial Valve, Inc. Rebuild Kits
• Superior materials; more corrosion resistant materials that offer longer valve life
• Engineered for harsher applications; improved seal & seat materials
• Compact Size; smaller shape allows them to fit into applications where space is limited
