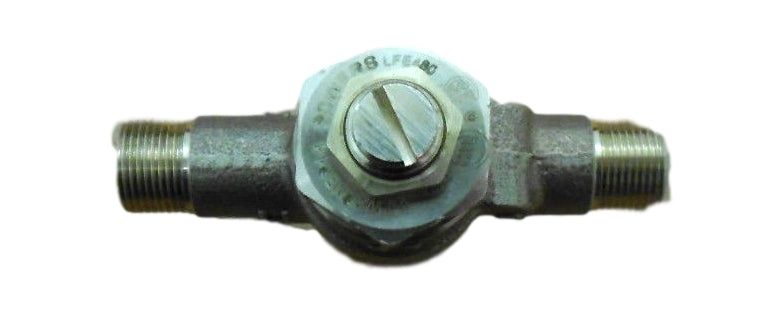

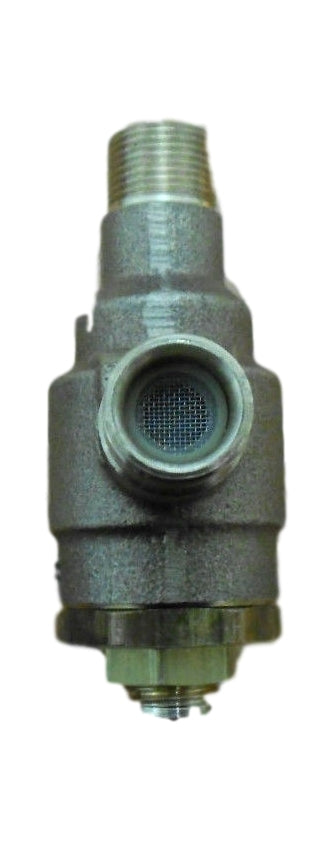

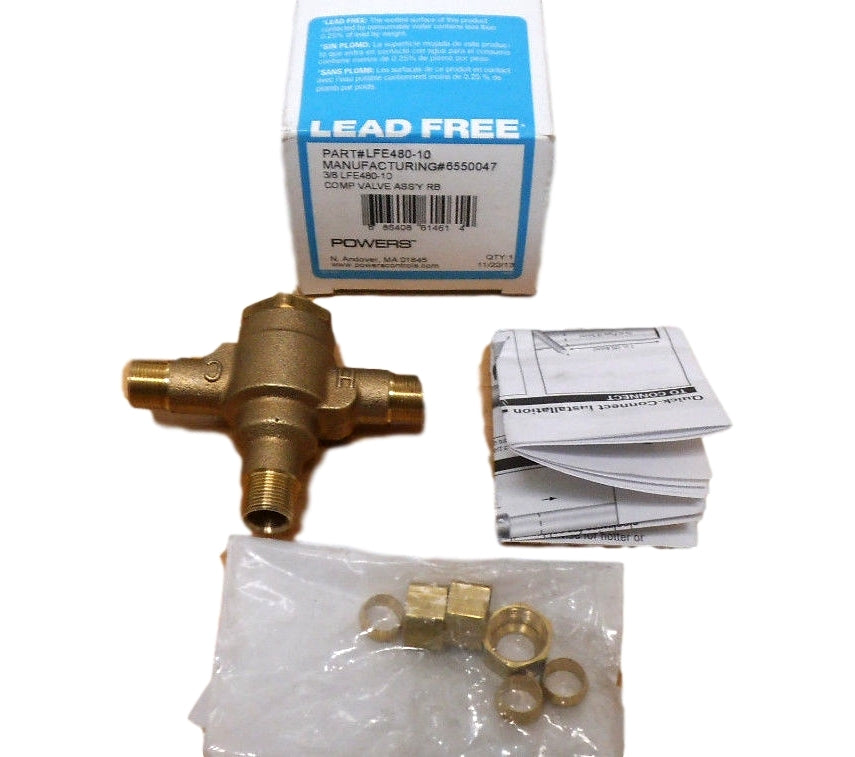

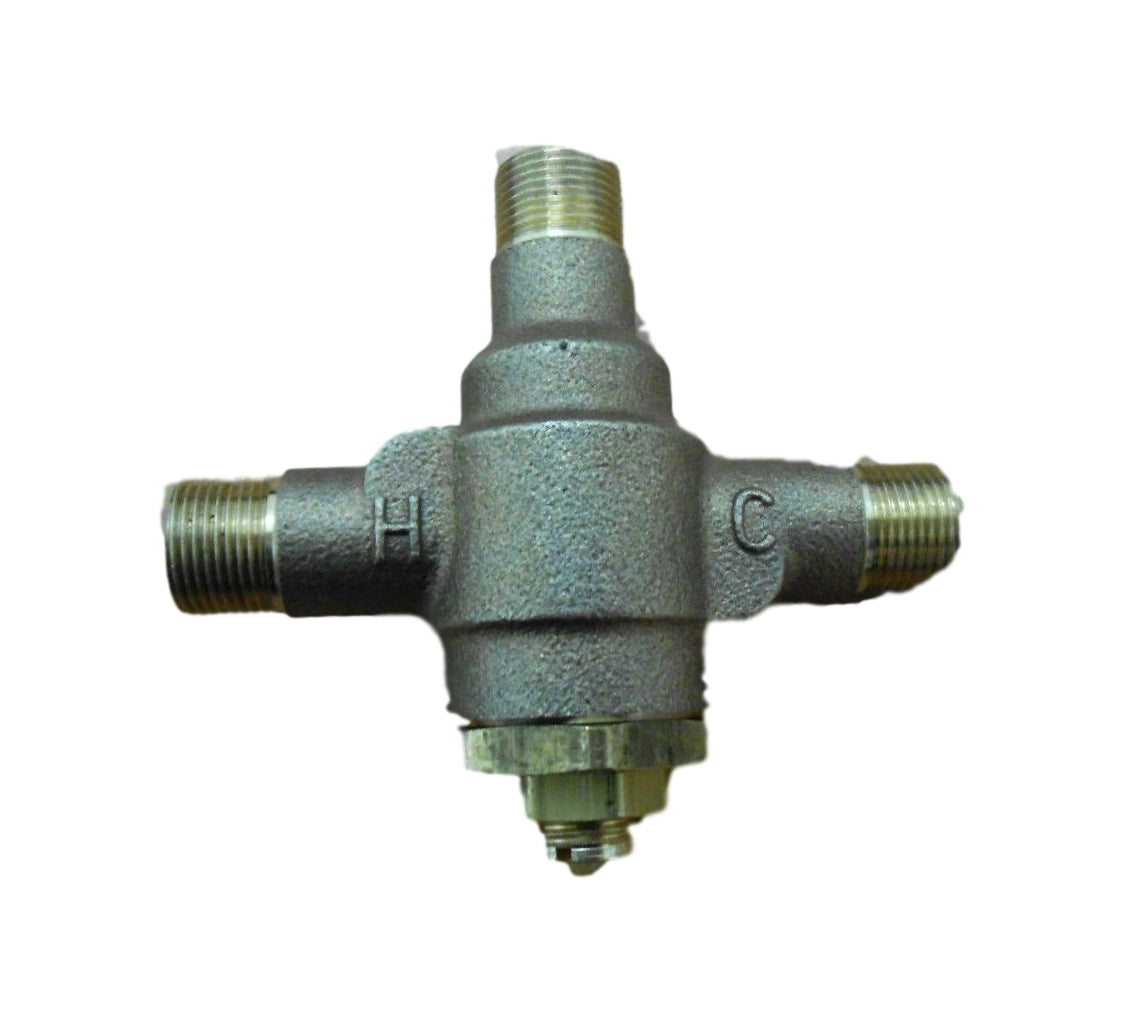

Powers LFE480-10 - 3/8" NPT Compression Thermostatic Valve Assembly - LEAD FREE
Powers LFE480-10 - 3/8 NPT Compression Thermostatic Valve - LEAD FREE for Low Flow Control.
FEATURES & SPECS:
- HydroGuard Lead Free Series LFe480 Under-the-Counter Combination Tempering Valves for Low Flow Control
- 3/8 NPT - Rough Bronze Finish
- Adjustable temperature selection with locknut to prevent tampering
- Advanced thermal actuator improves performance
- Temperature controls to ASSE 1070, down to 0.5 gpm
- Lead Free* brass body for durability & to comply with Lead Free* installation
- requirements
- Corrosion resistant internal components for extended life
- Integral checks with screens prevents cross flow and filter out debris
- Factory set to 105° F (41° C)
- Maximum Operating Pressure: 125psi (861 kPa)
- Maximum Hot Water Temperature: 180°F (82°C)
- Minimum Hot Water Supply Temperature: 5°F (3°C) above set point+
- Hot Water Inlet Temperature Range: 120 – 180 °F (49 – 82°C)
- Cold Water Inlet Temperature Range: 40 – 80 °F (4 – 27°C)
- Temperature Adjustment Range: 80 – 120°F (27 – 49°C)
- Minimum Flow: 0.5 gpm (1.9 lpm)
