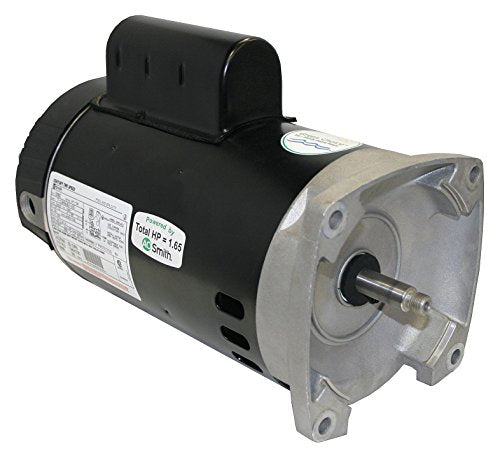

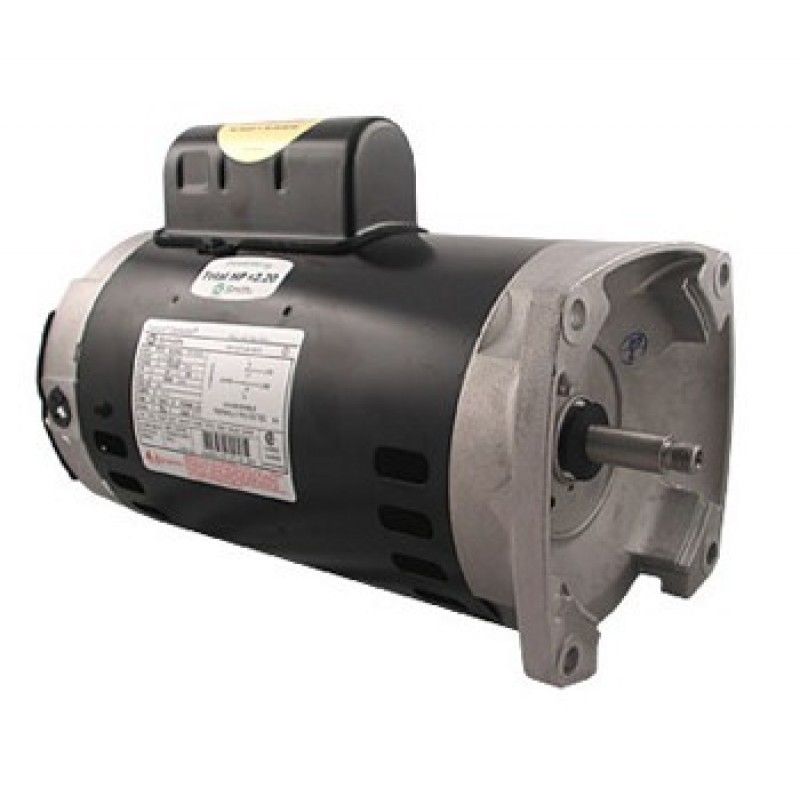

A.O. Smith B2984 2-Speed 56Y Frame 2HP 230V Square Flange Pump Motor

$573.43

The AO Smith B2984 2-Speed Pool Pump Motor is a square flange style motor with a 56Y Frame and is an Energy Efficient 2 Horsepower motor. Square Flange motors have a square "face" where the motor mounts to the pump with 4 non-threaded bolt holes to attach the pump and a threaded shaft.

Features:

2 HP - Full Rated
2 Speed
High Speed: 2 HP
Low Speed: 1/4 HP
Service Factor: 1.3
56Y Frame
230V
11.0 / 1.8 amps
Square Flange (Face)
Threaded Shaft
60 Hertz - Single phase
Capacitor start
